SML-LX2832IC-TR

LED Indication - Discrete Overview

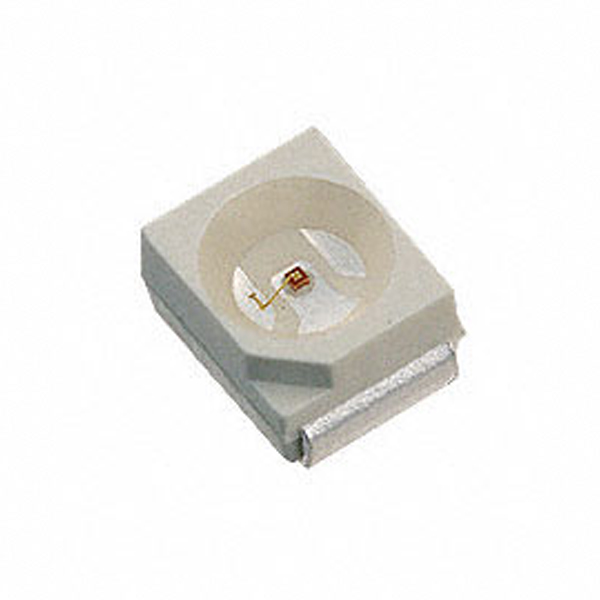

The SML-LX2832IC-TR is a single-color red surface-mount LED manufactured by Lumex Opto/Components Inc. It features a 2832 package with dimensions of 3.2 mm length, 2.8 mm width, and 1.9 mm height. The device emits light at a peak wavelength of 635 nm with a viewing angle of 120 degrees. Electrical characteristics include a forward current of 20 mA and a forward voltage of 1.7 V. The component has a power rating of 100 mW and an optical intensity of 100 mcd. It operates within a temperature range of -40°C to +85°C and utilizes a colorless, water-clear round flat lens.

LED Indication - Discrete Feature Summary

• Surface mount design in a compact 2832 package for automated assembly
• Top-view configuration with a reflector structure for optimized light emission
• Water-clear lens material providing high transparency

LED Indication - Discrete Applications

• Panel status indicators
• Instrumentation displays
• Electronic equipment signaling

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version when sourcing, as some references cite a peak wavelength of 632 nm while others specify 635 nm. Confirm RoHS3 compliance status through official manufacturer documentation prior to integration. Ensure handling procedures account for moisture sensitivity level 3 classification during storage and reflow soldering processes.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a standard red indicator in a 2832 footprint. The 120-degree viewing angle suits general visibility needs. Consider the 1.7 V forward voltage drop for circuit design calculations. Verify that the 100 mcd intensity meets the required visibility standards for the target enclosure or panel environment.

LED Indication - Discrete Part Context

This part belongs to the Lumex SML-LX series of surface-mount LEDs. The 2832 designation indicates the physical package size. Similar variants in this family include different colors such as green (SML-LX2832IGC-TR) and yellow (SML-LX2832SYC-TR), which share the same mechanical dimensions but differ in optical output and electrical parameters.

LED Indication - Discrete Replacement Considerations

Direct substitutes are not explicitly confirmed in public documentation. Cross-reference mechanical dimensions and pinout compatibility if considering alternative manufacturers. Verify spectral output differences to ensure visual consistency in existing designs.
