SML-LXFT0805SUGCTR

LED Indication - Discrete Overview

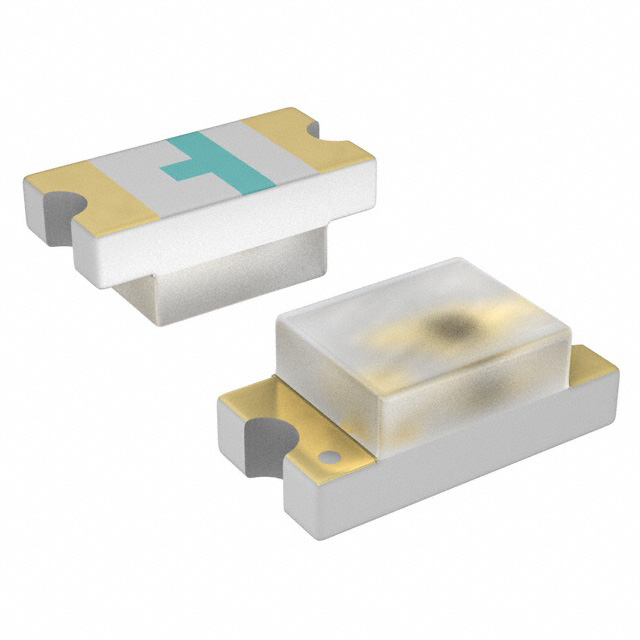

The SML-LXFT0805SUGCTR is a single-color surface-mount LED manufactured by Lumex Opto/Components Inc. It emits ultra-super green light with a peak wavelength of 525 nm and features a clear lens. The component utilizes an 0805 (2012 metric) package, measuring 2.00 mm in length and 1.25 mm in width. Electrical characteristics include a typical forward voltage of 3.5 V at a test current of 20 mA, with a power rating of 100 mW. The device offers a viewing angle of 140 degrees and achieves a luminous intensity of 45 mcd.

LED Indication - Discrete Feature Summary

• Emits pure ultra-super green light for high visibility applications
• Features a water-clear lens to maximize light transmission
• Designed for standard surface-mount technology assembly processes

LED Indication - Discrete Applications

• Electronic equipment status indicators
• Instrument panel illumination
• Consumer appliance control interfaces

LED Indication - Discrete Procurement Notes

Verify the specific suffix against official Lumex documentation to confirm exact optical and electrical tolerances. Ensure compatibility with standard reflow soldering profiles for 0805 packages. Confirm RoHS compliance status through the manufacturer's latest environmental statement before integration into regulated assemblies.

LED Indication - Discrete Selection Notes

Select this component when a compact green indicator is required for space-constrained designs. The 0805 footprint allows for dense PCB layouts while maintaining adequate brightness levels. Consider the 3.5 V forward voltage drop when designing series resistor networks or constant current drivers to ensure proper biasing within the specified 20 mA operating range.

LED Indication - Discrete Part Context

This part belongs to Lumex's SMD LED portfolio, specifically the 0805 form factor series. It serves as a discrete indicator solution within the broader category of optoelectronic components. The product line emphasizes reliability and standardized packaging for automated manufacturing environments.

LED Indication - Discrete Replacement Considerations

Direct substitutes require matching the 0805 package dimensions, 525 nm peak wavelength, and similar forward voltage characteristics. Verify pinout compatibility and thermal management requirements before swapping with alternative single-color green LEDs from other manufacturers.
