SML-LXR85SUGC-TR

LED Indication - Discrete Overview

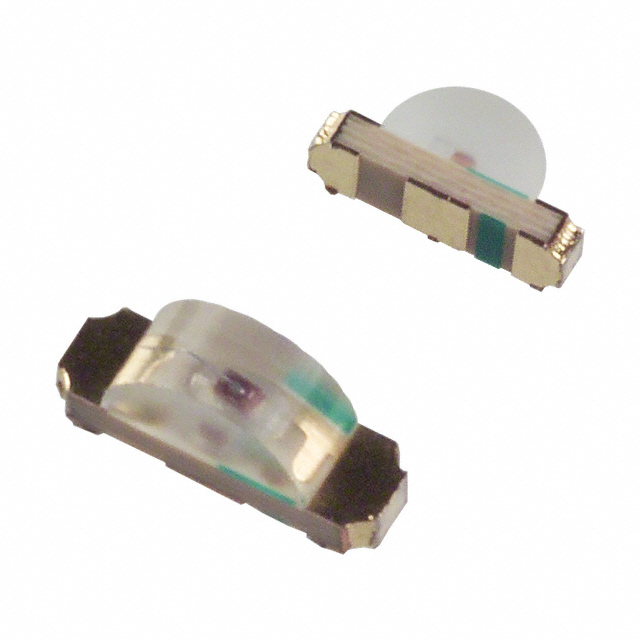

The SML-LXR85SUGC-TR is a single-color green surface-mount LED manufactured by Lumex Opto/Components Inc. It utilizes a semitube lens with water-clear transparency and measures 2 mm x 1 mm. The component operates at a peak wavelength of 565 nm with a typical forward voltage of 2.1 V and a test current of 20 mA. It delivers an optical intensity of 16 mcd within a 120-degree viewing angle, rated for a maximum power dissipation of 80 mW.

LED Indication - Discrete Feature Summary

• Features a semitube lens design with water-clear transparency to direct light output effectively.
• Provides high-intensity green illumination suitable for visual status indication applications.
• Constructed for surface-mount technology (SMD/SMT) installation on printed circuit boards.

LED Indication - Discrete Applications

• Visual status indicators in electronic equipment
• Panel-mounted signal lights
• Instrumentation display backlights

LED Indication - Discrete Procurement Notes

Verify the specific suffix against official Lumex documentation to confirm exact binning and packaging specifications. Ensure compatibility with standard reflow soldering profiles for SMD components. Confirm RoHS3 compliance requirements match project environmental standards before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a compact green indicator with a semitube lens profile is required. Consider the 120-degree viewing angle and 16 mcd intensity for visibility needs. Verify that the 2.1 V forward voltage aligns with the driving circuit's logic levels and current limiting resistor calculations.

LED Indication - Discrete Part Context

This part belongs to the Lumex SMD LED family, designed for space-constrained electronics. It offers a standardized footprint compatible with common PCB land patterns. The product line emphasizes reliability and consistent optical performance for industrial and consumer applications.

LED Indication - Discrete Replacement Considerations

Consult official Lumex documentation for verified substitute part numbers. Cross-reference electrical parameters such as forward voltage and luminous intensity to ensure functional equivalence without modifying the existing circuit design.
