SML-M13YTT86

LED Indication - Discrete Overview

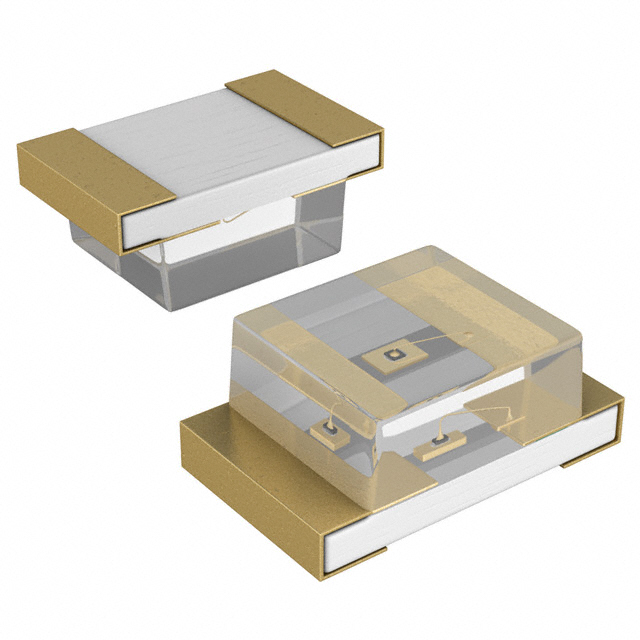

The SML-M13YTT86 is a surface-mount yellow LED from ROHM Semiconductor, designed for industrial equipment applications. It features a reflector-type package with dimensions of 3.0 x 2.0 mm and a thickness of 1.3 mm. The component emits at a typical dominant wavelength of 585 nm with a luminous intensity of 6.3 mcd. Electrical characteristics include a forward voltage of 2.1 V at a forward current of 20 mA, with a power dissipation rating of 70 mW. Operating temperatures range from -30°C to +85°C, while storage conditions support -40°C to +85°C.

LED Indication - Discrete Feature Summary

• Reflector-type surface mount construction for enhanced light emission
• Yellow emission with standard brightness ranking options
• Compatible with automatic mounting and reflow soldering processes

LED Indication - Discrete Applications

• Industrial equipment indicator lights
• Panel status indicators
• General-purpose signal illumination

LED Indication - Discrete Procurement Notes

Verify the specific suffix T86 against the official ROHM datasheet to confirm packaging quantity and tape-and-reel specifications. Ensure that the requested part number matches the exact electrical parameters and mechanical dimensions listed in the product documentation. Cross-reference the manufacturer's latest revision history to avoid obsolete or discontinued variants within the SML-01 series family.

LED Indication - Discrete Selection Notes

Select this component when a compact 1206 metric footprint is required for yellow indication. The 20 mA drive current and 2.1 V forward voltage are suitable for standard logic-level interfacing. Consider the 140-degree viewing angle if wide visibility is necessary. Verify thermal management requirements against the 70 mW power dissipation limit during continuous operation.

LED Indication - Discrete Part Context

This part belongs to the SML-01 series of single-color LEDs manufactured by ROHM Semiconductor. The series utilizes GaAsP chip technology housed in a standard surface-mount package. It is distinct from infrared variants like the SML-M13RT or other color options within the same physical form factor, ensuring precise spectral output for visual signaling.

LED Indication - Discrete Replacement Considerations

Publicly confirmed substitute part numbers for the SML-M13YTT86 were not identified in the provided source material. Consult the manufacturer's official replacement guide or cross-reference database for verified equivalents.
