SML-P11MTT86

LED Indication - Discrete Overview

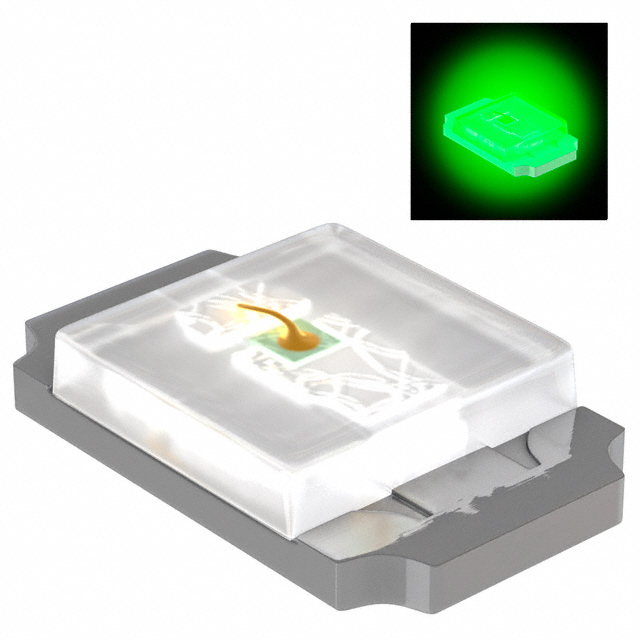

The SML-P11MTT86 is a single-color yellow-green PICOLED™ surface-mount LED manufactured by ROHM Semiconductor. It utilizes an AlGaInP chip structure and features a 0402 (1.0x0.6 mm, t=0.2 mm) package size. The device operates with a typical forward voltage of 1.9 V at a forward current of 20 mA, resulting in a power dissipation rating of 54 mW. It emits light at a typical dominant wavelength of 569 nm with a luminous intensity of 2.1 mcd. The component supports operating temperatures from -40°C to +85°C and storage temperatures from -40°C to +100°C.

LED Indication - Discrete Feature Summary

• Ultra-small and ultra-thin configuration enabling high-density LED matrices
• Low current operation suitable for power-constrained applications
• Surface mount design optimized for downsizing requirements

LED Indication - Discrete Applications

• Home appliances requiring compact indicators
• Industrial equipment status signaling
• Wearable electronics with space constraints

LED Indication - Discrete Procurement Notes

Verify the specific suffix variant (e.g., T86 vs T86R) against the manufacturer's official datasheet to ensure correct packaging quantity and tape-and-reel specifications. Confirm RoHS compliance status and humidity sensitivity handling procedures prior to assembly. Cross-reference the exact part number with authorized distributors to avoid counterfeit components.

LED Indication - Discrete Selection Notes

Select this component when extreme miniaturization is required alongside low-power consumption. The 0402 footprint allows for dense circuit layouts. Ensure the application environment stays within the specified -40°C to +85°C operating range. Consider the 569 nm yellow-green emission spectrum for visibility requirements in the target design.

LED Indication - Discrete Part Context

This part belongs to ROHM's PICOLED™ series, which specializes in ultra-compact LED solutions. The series enables the creation of fine LED matrices beyond standard capabilities. It is designed for future-proofing designs that demand significant downsizing while maintaining reliable optical performance in small form factors.

LED Indication - Discrete Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing footprints if considering alternative manufacturers. Check electrical parameters such as forward voltage and luminous intensity against the original design requirements before substitution.
