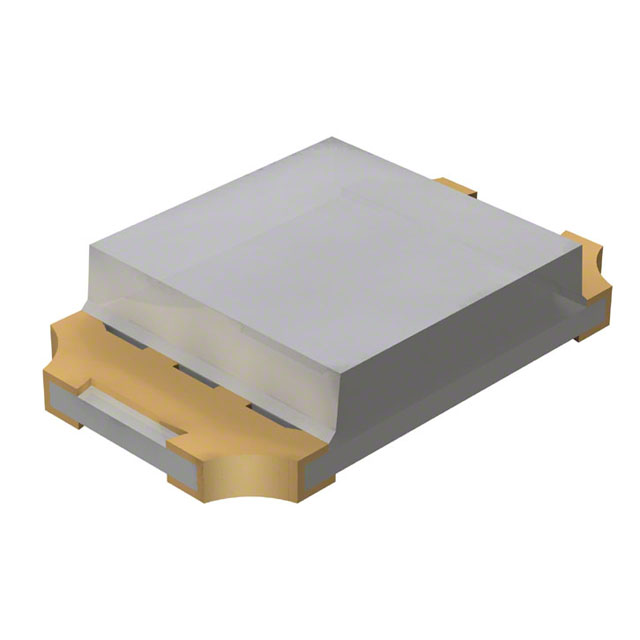

SML-P11VTT86R

$0.40

Description：LED RED CLEAR 1006 SMD
Series：PicoLED™
Mfr：Rohm Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:677beb622adf Category: LED Indication - Discrete Brand: Rohm Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SML-P11VTT86R is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Rohm Semiconductor. Its product description is LED RED CLEAR 1006 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for SML-P11VTT86R

Description：LED RED CLEAR 1006 SMD
Series：PicoLED™
Mfr：Rohm Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：4mcd
Lens Style：Square with Flat Top
Lens Size：0.60mm
Voltage - Forward (Vf) (Typ)：1.8V
Current - Test：1mA
Viewing Angle：-
Mounting Type：Surface Mount
Wavelength - Dominant：626nm
Wavelength - Peak：-
Features：-
Package / Case：0402 (1006 Metric)
Supplier Device Package：1006 (0402)
Size / Dimension：1.00mm L x 0.60mm W
Height (Max)：0.25mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for SML-P11VTT86R

SML-P11VTT86R

LED Indication - Discrete Overview

The SML-P11VTT86R is a single-color red LED from the ROHM PICOLED series, designed for low-current applications. It features a surface-mount 0402 (1005 metric) package with dimensions of 1.0 mm length, 0.6 mm width, and 0.2 mm height. The device emits at a dominant wavelength of 621 nm with a typical luminous intensity of 2.5 mcd. Electrical characteristics include a forward voltage of 1.8 V at a forward current of 20 mA, resulting in a power rating of 54 mW. It operates within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

Ultra-compact 0402 surface-mount form factor suitable for space-constrained designs
Low-current operation capability optimized for battery-powered devices
Water-clear colorless lens providing defined light emission

LED Indication - Discrete Applications

Status indicators in wearable electronics
Low-power home appliance control panels
Industrial equipment signal lights

LED Indication - Discrete Procurement Notes

Verify component authenticity through authorized channels due to potential counterfeit risks. Confirm RoHS compliance status via official datasheets before integration. Check for moisture sensitivity handling requirements during storage and reflow soldering processes. Ensure supply chain stability as availability may fluctuate based on manufacturer production schedules.

LED Indication - Discrete Selection Notes

Select this component when ultra-small footprint and low current consumption are critical design constraints. Compare against similar PICOLED variants if different wavelengths or intensities are required. Verify thermal management capabilities align with the specified operating temperature range. Consider packaging options such as cut tape or reel based on assembly line equipment compatibility.

LED Indication - Discrete Part Context

This part belongs to the SML-P11 series of PICOLEDs, characterized by their miniature size and thin profile. The series targets applications demanding high-density LED arrays or significant board space reduction. It represents ROHM's focus on miniaturization while maintaining reliable optical performance for consumer and industrial sectors.
