SML-P12U2TT86R

LED Indication - Discrete Overview

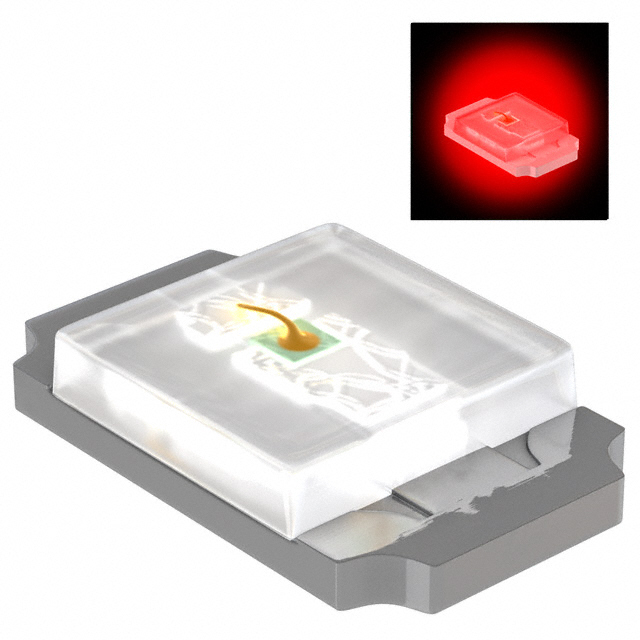

The SML-P12U2TT86R is a single-color red LED from the PicoLED series, manufactured by Rohm Semiconductor. It features an ultra-small and ultra-thin surface-mount design with dimensions of 1.0 mm in length, 0.6 mm in width, and 0.2 mm in height. The device utilizes a clear lens and emits light at a dominant wavelength of 615 nm. Key electrical parameters include a forward voltage of 2.0 V and a forward current rating of 20 mA. The typical luminous intensity is 140 mcd, with a power dissipation rating of 75 mW. It operates within a temperature range of -40°C to +100°C.

LED Indication - Discrete Feature Summary

• Ultra-small and ultra-thin configuration enabling high-density LED matrices
• Standard rectangular lens shape with water-clear transparency
• Single color red emission optimized for compact indicator applications

LED Indication - Discrete Applications

• Home appliance status indicators
• Industrial equipment signaling
• Wearable device displays

LED Indication - Discrete Procurement Notes

Verify component authenticity through authorized distribution channels. Confirm RoHS compliance status prior to integration. Ensure storage conditions maintain moisture sensitivity levels as specified. Validate package integrity against shipping damage. Cross-reference ordering suffixes with official datasheets to confirm exact optical and electrical characteristics.

LED Indication - Discrete Selection Notes

Select this component for designs requiring minimal footprint and profile constraints. Consider the specific forward voltage requirements for driver circuit compatibility. Evaluate thermal management capabilities given the small package size. Assess visibility needs against the standard luminous intensity specifications. Verify operating temperature range suitability for the target environment.

LED Indication - Discrete Part Context

This part belongs to the PicoLED family, characterized by extreme miniaturization. It serves as a building block for advanced display technologies where space is limited. The series supports various colors and intensities while maintaining consistent mechanical dimensions for standardized PCB layouts.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
