SML-Z14FTT86C

LED Indication - Discrete Overview

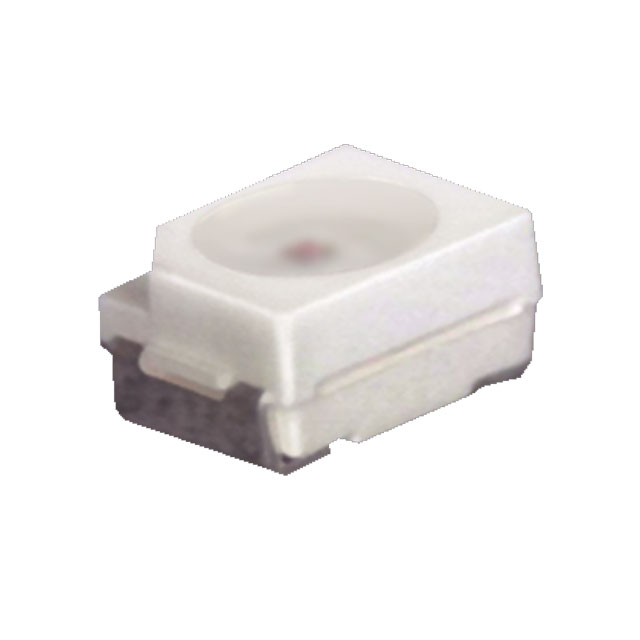

The SML-Z14FTT86C is an automotive-grade, high-brightness reflector type single-color green LED from the ROHM SML-Z1 series. It complies with AEC-Q101 standards for automotive applications. The component features a PLCC2 package with dimensions of 3.5 mm x 2.8 mm and a height of 1.9 mm. Key electrical parameters include a typical forward voltage (Vf) of 2 V at a forward current (If) of 20 mA, with a power dissipation rating of 175 mW. The dominant wavelength is typically 564 nm, and the luminous intensity is typically 45 mcd. It operates within a temperature range of -40°C to +100°C.

LED Indication - Discrete Feature Summary

• Complies with AEC-Q101 automotive grade qualification standards
• Features a reflector type structure for enhanced brightness
• Utilizes a standard PLCC2 surface mount package

LED Indication - Discrete Applications

• Car interior lighting systems
• Automotive indicator displays
• Dashboard status indicators

LED Indication - Discrete Procurement Notes

Verify the specific suffix 'TT86C' against official ROHM documentation to confirm tape and reel packaging specifications. Ensure the part meets current AEC-Q101 reliability requirements for your target automotive application. Confirm availability status directly with authorized distributors as production statuses may change. Cross-reference the RoHS compliance details in the latest datasheet before integration.

LED Indication - Discrete Selection Notes

Select this component when an automotive-qualified green LED with a reflector design is required. The PLCC2 form factor suits standard surface mount assembly processes. Consider the 20 mA drive current and 175 mW power dissipation limits during thermal management planning. Verify that the 564 nm dominant wavelength aligns with the optical system requirements for the intended vehicle interior application.

LED Indication - Discrete Part Context

This device belongs to the SML-Z1 series, which is specifically engineered for automotive electronics. The series emphasizes high reliability and brightness through its reflector chip structure. It is designed to meet the stringent environmental and performance standards required for modern vehicle internal components, ensuring long-term stability under varying thermal conditions.

LED Indication - Discrete Replacement Considerations

Consult official ROHM documentation for qualified substitute part numbers within the SML-Z1 series or other automotive-grade green LEDs. Verify pinout compatibility and dimensional tolerances if considering alternatives from other manufacturers. Ensure any replacement also holds valid AEC-Q101 certification for automotive use.
