SML813BNTT86

$0.63

Description：LED BLUE CLEAR 1305 SMD
Series：SML-813x
Mfr：Rohm Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:f2e99acae953 Category: LED Indication - Discrete Brand: Rohm Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SML813BNTT86 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Rohm Semiconductor. Its product description is LED BLUE CLEAR 1305 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for SML813BNTT86

Description：LED BLUE CLEAR 1305 SMD
Series：SML-813x
Mfr：Rohm Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Blue
Configuration：-
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：185mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.25mm x 1.20mm
Voltage - Forward (Vf) (Typ)：3.2V
Current - Test：20mA
Viewing Angle：-
Mounting Type：Surface Mount
Wavelength - Dominant：470nm
Wavelength - Peak：-
Features：-
Package / Case：1305 (3412 Metric)
Supplier Device Package：1305
Size / Dimension：3.40mm L x 1.25mm W
Height (Max)：1.15mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for SML813BNTT86

SML813BNTT86

LED Indication - Discrete Overview

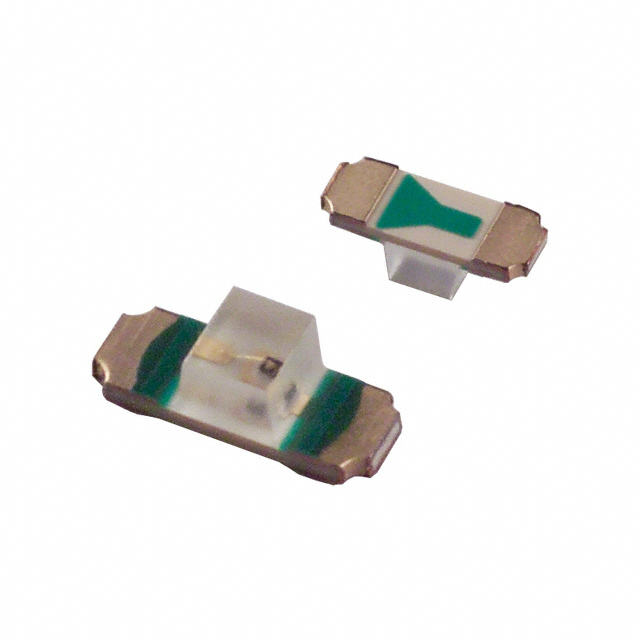

The SML813BNTT86 is a blue single-color chip LED from the SML-81 series, manufactured by ROHM Semiconductor. It features an InGaN chip structure and reverse mount capability within a 1208 (3.4 x 1.25 mm) surface-mount package with a height of 1.1 mm. The device emits at a typical dominant wavelength of 470 nm with a luminous intensity of 185 mcd. Electrical characteristics include a forward voltage of 3.2 V at 20 mA and a power dissipation rating of 76 mW. Operating temperatures range from -30°C to +85°C.

LED Indication - Discrete Feature Summary

Reverse mount configuration allows for mounting on the back side of the substrate.
InGaN chip structure provides stable blue light emission.
Compact 1208 surface-mount package suitable for space-constrained designs.

LED Indication - Discrete Applications

Home appliance indicator lights
Industrial equipment status displays

LED Indication - Discrete Procurement Notes

Verify component authenticity through authorized channels. Confirm RoHS compliance status prior to integration. Ensure storage conditions remain within specified limits to maintain reliability. Check for end-of-life notifications or obsolescence warnings before finalizing procurement plans.

LED Indication - Discrete Selection Notes

Select this component when reverse mount functionality is required for blue indication. Compare electrical parameters against system requirements. Consider thermal management capabilities within the 1208 package constraints. Evaluate brightness uniformity across production batches for consistent visual output.

LED Indication - Discrete Part Context

Part of the SML-81 series offering reverse mount options. Manufactured by ROHM Semiconductor using InGaN technology. Designed for general-purpose indication in consumer and industrial electronics.
