SMLP12BC7TT86UM

LED Indication - Discrete Overview

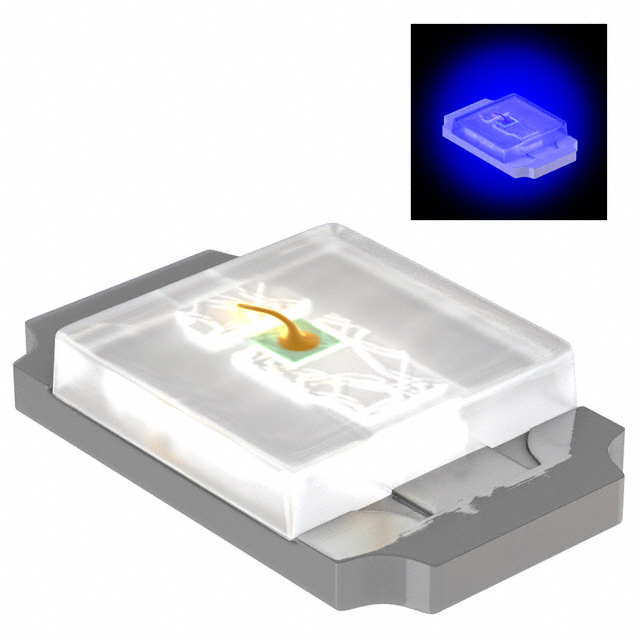

The SMLP12BC7TT86UM is a blue surface-mount LED from the PicoLED series, manufactured by ROHM Semiconductor. It features a 0402 (1005 metric) package with dimensions of 1.00 mm in length and 0.60 mm in width, and a maximum height of 0.25 mm. The device emits light at a dominant wavelength of 470 nm with a typical luminous intensity of 25 mcd. Electrical characteristics include a forward voltage of 2.9 V measured at a test current of 5 mA.

LED Indication - Discrete Feature Summary

• Ultra-thin profile suitable for space-constrained designs
• Square lens shape with a flat top surface
• Colorless transparent lens material

LED Indication - Discrete Applications

• Smartphone indicator lighting
• Mobile device status indication
• Compact consumer electronics displays

LED Indication - Discrete Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance documentation matches the specific production batch. Ensure storage conditions adhere to moisture sensitivity level requirements prior to soldering. Validate that the ordering suffix corresponds to the required tape and reel configuration for automated assembly processes.

LED Indication - Discrete Selection Notes

Select this component when a low-profile blue LED is required for high-density circuit boards. The 0402 footprint allows for miniaturization compared to larger packages. Consider the 5 mA operating current for low-power applications. Verify thermal management capabilities within the 0.25 mm height constraint during the design phase.

LED Indication - Discrete Part Context

This part belongs to the PicoLED family, which specializes in ultra-miniature surface-mount LEDs. The series is engineered for mobile devices where board real estate is limited. The SMLP12BC7 variant specifically denotes the blue emission color within this compact form factor line.

LED Indication - Discrete Replacement Considerations

SMLP13EC8TT86 is an alternative offering similar dimensions but emits bluish-green light instead of blue. Both components share the 0402 package outline, facilitating potential mechanical compatibility in existing layouts.
