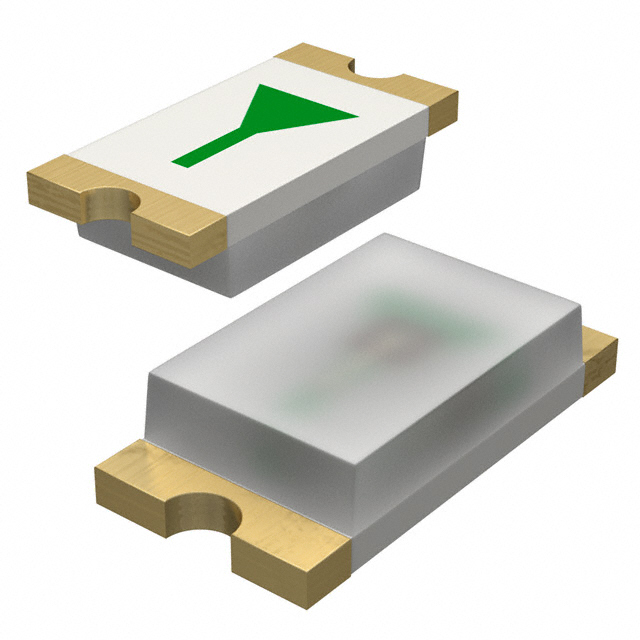

SMLT12WBC8CW1

$0.20

Description：LED WHITE DIFFUSED 1608 SMD
Series：SML-T1
Mfr：Rohm Semiconductor
Package：Tape & Reel (TR)

SKU:0e48c3092eb4 Category: LED Indication - Discrete Brand: Rohm Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SMLT12WBC8CW1 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Rohm Semiconductor. Its product description is LED WHITE DIFFUSED 1608 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for SMLT12WBC8CW1

Description：LED WHITE DIFFUSED 1608 SMD
Series：SML-T1
Mfr：Rohm Semiconductor
Package：Tape & Reel (TR)
Color：White
Configuration：Standard
Lens Color：White
Lens Transparency：Diffused
Millicandela Rating：120mcd
Lens Style：Rectangle with Flat Top
Lens Size：-
Voltage - Forward (Vf) (Typ)：2.9V
Current - Test：5mA
Viewing Angle：-
Mounting Type：Surface Mount
Wavelength - Dominant：-
Wavelength - Peak：-
Features：-
Package / Case：0603 (1608 Metric)
Supplier Device Package：1608 (0603)
Size / Dimension：1.60mm L x 0.80mm W
Height (Max)：0.75mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for SMLT12WBC8CW1

SMLT12WBC8CW1

LED Indication - Discrete Overview

The SMLT12WBC8CW1 is a white surface-mount LED from ROHM Semiconductor, housed in a 0603 (1608 metric) package. It operates with a forward current of 5 mA and a forward voltage of 2.9 V. The component delivers a luminous intensity of 120 mcd with a power dissipation rating of 33 mW. It features a milky white diffused lens with dimensions of 1.2 mm x 0.8 mm. The device supports an operating temperature range from -40°C to +85°C and complies with RoHS standards.

LED Indication - Discrete Feature Summary

Diffused white light emission for uniform illumination
Low power consumption suitable for battery-operated devices
Compact 0603 surface-mount form factor

LED Indication - Discrete Applications

Status indication in consumer electronics
Backlighting for portable devices
Indicator lights in home appliances

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix and datasheet revision before procurement. Confirm that the component meets the required humidity sensitivity level for your manufacturing process. Ensure compatibility with standard reflow soldering profiles for 0603 packages. Cross-reference the manufacturer part number with authorized distributor listings to avoid counterfeit components.

LED Indication - Discrete Selection Notes

Select this component when a low-current white indicator is required in space-constrained designs. The 5 mA drive current offers energy efficiency compared to standard 20 mA LEDs. The diffused lens provides a softer light output suitable for user interface feedback. Consider the 0603 footprint availability in your PCB layout constraints.

LED Indication - Discrete Part Context

This part belongs to the ROHM SMD LED portfolio, designed for general-purpose indication. It complements other single-color and multi-color variants within the same series. The component utilizes InGaN chip technology for stable white light generation. It is intended for mass production in consumer and industrial electronic assemblies.
