SMLZ14WBECW1

LED Indication - Discrete Overview

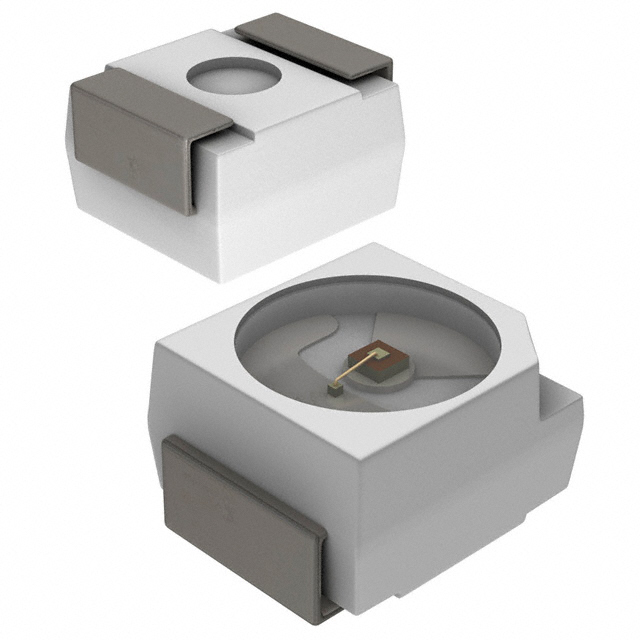

The SMLZ14WBECW1 is a white surface-mount LED from ROHM Semiconductor, designed for indication applications. It utilizes a 2-PLCC package with dimensions of 3.2 mm in length and 1.9 mm in height. The component emits diffused white light with a typical luminous intensity of 200 mcd. It operates with a forward voltage of approximately 3.2 V at a forward current of 20 mA, resulting in a power dissipation rating of 64 mW. The device supports moisture-sensitive handling protocols and functions within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

• Compact 2-PLCC surface-mount configuration suitable for space-constrained designs
• Diffused white light emission for uniform visual indication
• Standardized 3228 metric footprint for automated assembly compatibility

LED Indication - Discrete Applications

• Industrial automation equipment status indicators
• Consumer electronics device signaling
• Home appliance control panel illumination

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix and packaging format against the latest manufacturer datasheet before procurement. Confirm moisture sensitivity level (MSL) classification and reflow soldering profile requirements to ensure proper handling during assembly. Check for any recent product change notifications or end-of-life declarations that may impact long-term supply availability.

LED Indication - Discrete Selection Notes

Select this component when a standard white indication LED with a 3228 footprint is required. Ensure the circuit design accommodates the 3.2 V forward voltage drop at 20 mA operating current. Verify that the application environment remains within the specified -40°C to +85°C operating temperature range for reliable performance.

LED Indication - Discrete Part Context

This part belongs to the SML-Z14 series of single-color LEDs manufactured by ROHM Semiconductor. The series offers various color options including red, green, yellow, and white, all sharing similar physical dimensions and mounting characteristics. This specific model provides white light output optimized for general indication purposes in compact electronic assemblies.

LED Indication - Discrete Replacement Considerations

Cross-reference with other 3228 footprint white LEDs from different manufacturers if supply constraints exist. Verify electrical parameters such as forward voltage and luminous intensity to ensure functional equivalence. Confirm mechanical compatibility with existing PCB land patterns and reflow profiles.
