SMP-MPGC-ZS

LED Indication - Discrete Overview

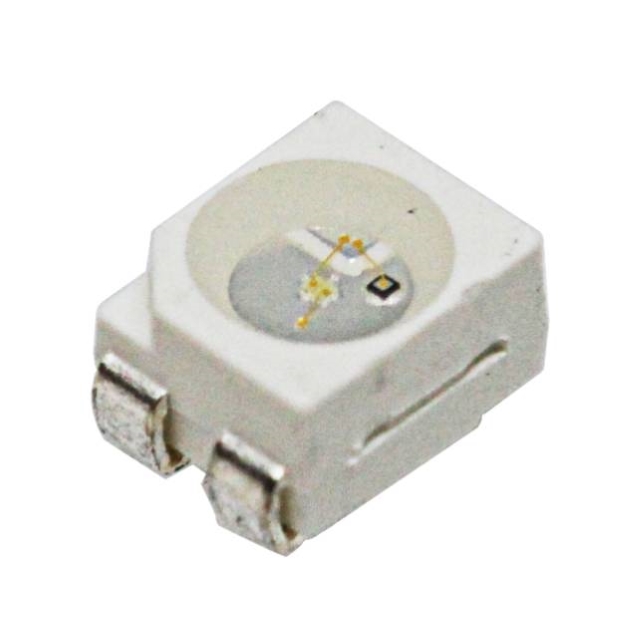

The SMP-MPGC-ZS is a green surface-mount LED from American Opto Plus LED, housed in a 4-PLCC package with dimensions of 3.20mm x 2.70mm and a maximum height of 1.90mm. It features a round lens with a flat top style and a viewing angle of 120 degrees. The component operates at a typical forward voltage of 3.2V and delivers a luminous intensity of 1400mcd. Its dominant wavelength is 525nm, with a peak wavelength of 515nm.

LED Indication - Discrete Feature Summary

• High-intensity green light emission suitable for visual indicators
• Compact surface-mount design for automated assembly processes
• Wide viewing angle for broad visibility applications

LED Indication - Discrete Applications

• Status indication on electronic circuit boards
• Visual signaling in consumer electronics devices
• Instrument panel lighting and control interfaces

LED Indication - Discrete Procurement Notes

Verify the specific package dimensions and electrical characteristics against the official datasheet before integration. Confirm RoHS compliance status and moisture sensitivity level requirements for your manufacturing process. Ensure compatibility with standard reflow soldering profiles for SMD components to maintain device reliability during production.

LED Indication - Discrete Selection Notes

Select this component when a high-brightness green indicator is required in a compact footprint. The 120-degree viewing angle provides excellent visibility compared to narrower beam LEDs. Consider the 3.2V forward voltage drop for power supply design and current limiting resistor calculations within the target application circuit.

LED Indication - Discrete Part Context

This part belongs to the PLCC SMD LED series from American Opto Plus LED, a manufacturer specializing in optoelectronic products since 1973. The company produces various LED lamps, displays, and discrete components for automotive and industrial markets. This specific model represents their standard surface-mount technology offerings for general-purpose indication.

LED Indication - Discrete Replacement Considerations

Cross-reference with SMP-NEC for potential alternative sourcing options. Verify pinout compatibility and electrical parameters such as forward voltage and luminous intensity before substitution. Ensure the replacement maintains the same package outline and mounting specifications for PCB layout integrity.
