SMP4-SRGY

LED Indication - Discrete Overview

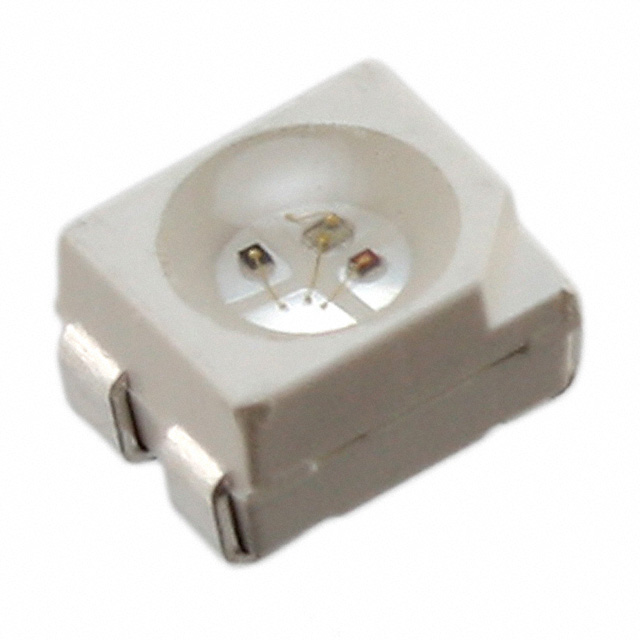

The Bivar SMP4-SRGY is a tri-color surface-mount LED indicator featuring Red, Green, and Yellow chips within a single PLCC4 package. It utilizes water-clear lens technology to deliver distinct color output from a compact footprint. The component operates with a forward voltage of 3.3V for the green chip and 1.9V for both red and yellow chips. Test current is specified at 20mA for all three colors. The optical dimensions are 3.2 mm x 2.8 mm x 1.85 mm, providing a 120-degree viewing angle suitable for standard PCB mounting.

LED Indication - Discrete Feature Summary

• Integrates three distinct LED colors into a single industry-standard PLCC4 package
• Utilizes water-clear lens material for consistent light transmission
• Provides high visibility through a wide 120-degree viewing angle

LED Indication - Discrete Applications

• Industrial equipment status indication
• Networking hardware signal monitoring
• IoT device power and state signaling

LED Indication - Discrete Procurement Notes

Verify that the specific suffix SRGY corresponds to the required wavelength specifications (631nm Red, 525nm Green, 591nm Yellow) before ordering. Confirm package compatibility with automated pick-and-place equipment due to the PLCC4 form factor. Ensure supply chain sources provide original manufacturer documentation to validate electrical characteristics against the official datasheet.

LED Indication - Discrete Selection Notes

Select this component when space constraints require multiple color indicators in a single footprint. The PLCC4 package allows for reflow soldering compatibility with standard surface-mount processes. Consider the 120-degree viewing angle for applications requiring broad visibility without direct line-of-sight alignment. Verify thermal management requirements for continuous operation at the specified 20mA test current.

LED Indication - Discrete Part Context

This part belongs to Bivar's SMP4 series of tri-color LEDs, designed for dense circuit board layouts. The series offers cost-effective lighting solutions by combining multiple functions into one component. It supports various industries including industrial, networking, and IoT markets where reliable visual indication is critical.

LED Indication - Discrete Replacement Considerations

The SMP4-RGY is a comparable tri-color variant within the same product family. Both share the PLCC4 footprint and general mechanical dimensions. Verify specific wavelength outputs and luminous intensity values to ensure functional equivalence for the intended application.
