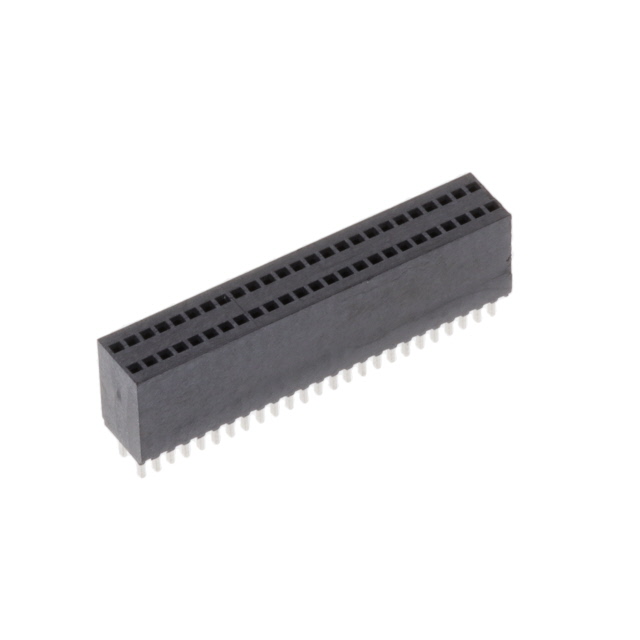

SMS-120-02-G-D

SMS-120-02-G-D is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is THROUGH-HOLE MICRO SOCKET, 0.050. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for SMS-120-02-G-D

• Description：THROUGH-HOLE MICRO SOCKET, 0.050
• Series：SMS
• Mfr：Samtec Inc.
• Package：Tube,Tube
• Connector Type：Receptacle
• Contact Type：Forked
• Style：Board to Board
• Number of Positions：40
• Number of Positions Loaded：All
• Pitch - Mating：0.050" (1.27mm)
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：10.0µin (0.25µm)
• Insulation Color：Black
• Insulation Height：0.335" (8.51mm)
• Contact Length - Post：0.190" (4.83mm)
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：-
• Contact Finish - Post：Gold
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：5A per Contact
• Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for SMS-120-02-G-D
