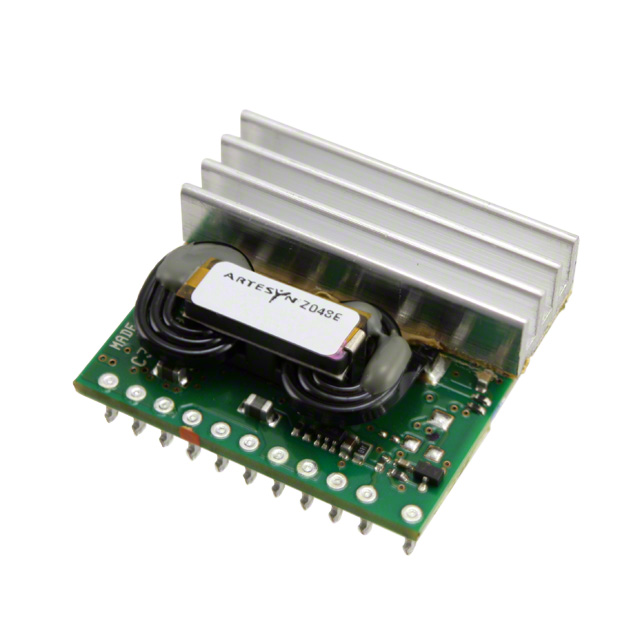

SMT40C2-00SADJJ

SMT40C2-00SADJJ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 0.6-5V 200W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for SMT40C2-00SADJJ

• Description：DC DC CONVERTER 0.6-5V 200W
• Series：SMT40C2 (200W)
• Mfr：ARTESYN / Advanced Energy
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：13.8V
• Voltage - Output 1：0.6 ~ 5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：40A
• Power (Watts)：200 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OVP, SCP
• Operating Temperature：0°C ~ 70°C
• Efficiency：94%
• Mounting Type：Surface Mount
• Package / Case：Module
• Size / Dimension：1.20" L x 1.10" W x 0.44" H (30.5mm x 27.9mm x 11.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for SMT40C2-00SADJJ
