SMV1050A-LF

Overview

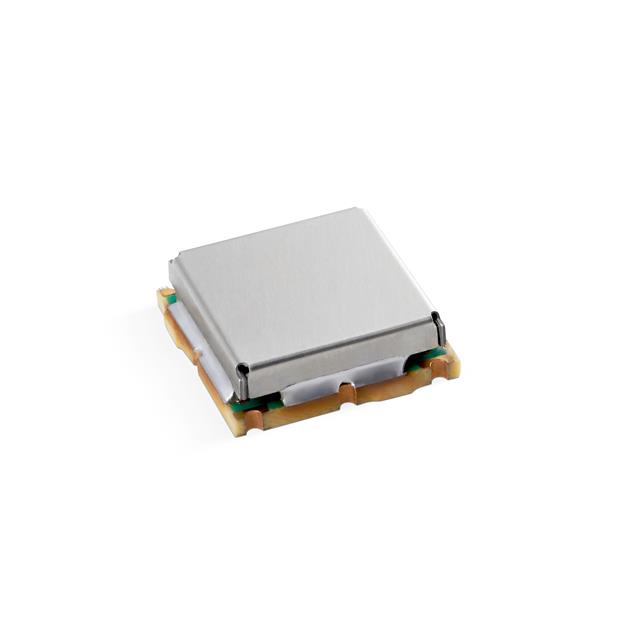

The SMV1050A-LF is a surface mount Voltage-Controlled Oscillator (VCO) module manufactured by Z-Communications, Inc. It operates within a frequency range of 1000 MHz to 1100 MHz. The device features a typical phase noise of -102 dBc/Hz at a 10 kHz offset. It delivers an output power of 0 ±2 dBm and exhibits a tuning sensitivity of 4 MHz/V. The unit supports a tuning voltage input and functions reliably across an operating temperature range of -40°C to +85°C.

Feature Summary

• Surface mount Voltage-Controlled Oscillator module design
• Coaxial resonator based topology for low phase noise performance
• Narrow band to octave tuning capability
• Designed and manufactured in the USA

Applications

• RF and microwave signal source generation
• Wireless communication systems
• Commercial wireless market applications
• Phase Locked Loop (PLL) synthesizer integration

Procurement Notes

Verify that the specific part number matches the required frequency range and package dimensions before procurement. Confirm that the supplier provides official documentation from Z-Communications, Inc. to ensure authenticity. Check for any specific handling requirements related to surface mount technology during storage and assembly processes.

Selection Notes

Select this component when a narrow band VCO with low phase noise is required for frequencies between 1000 MHz and 1100 MHz. Consider the 0 ±2 dBm output power level for system link budget calculations. Ensure the operating temperature range of -40°C to +85°C aligns with the environmental conditions of the intended application.

Part Context

Z-Communications, Inc. is a leading manufacturer of VCO and PLL modules for the commercial and wireless markets. The company has over two decades of experience in RF and microwave technology. This product line includes various coaxial, dielectric, and microstrip topology oscillators designed for high-performance radio frequency applications.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
