SMW22EC001-20

RF Directional Couplers Overview

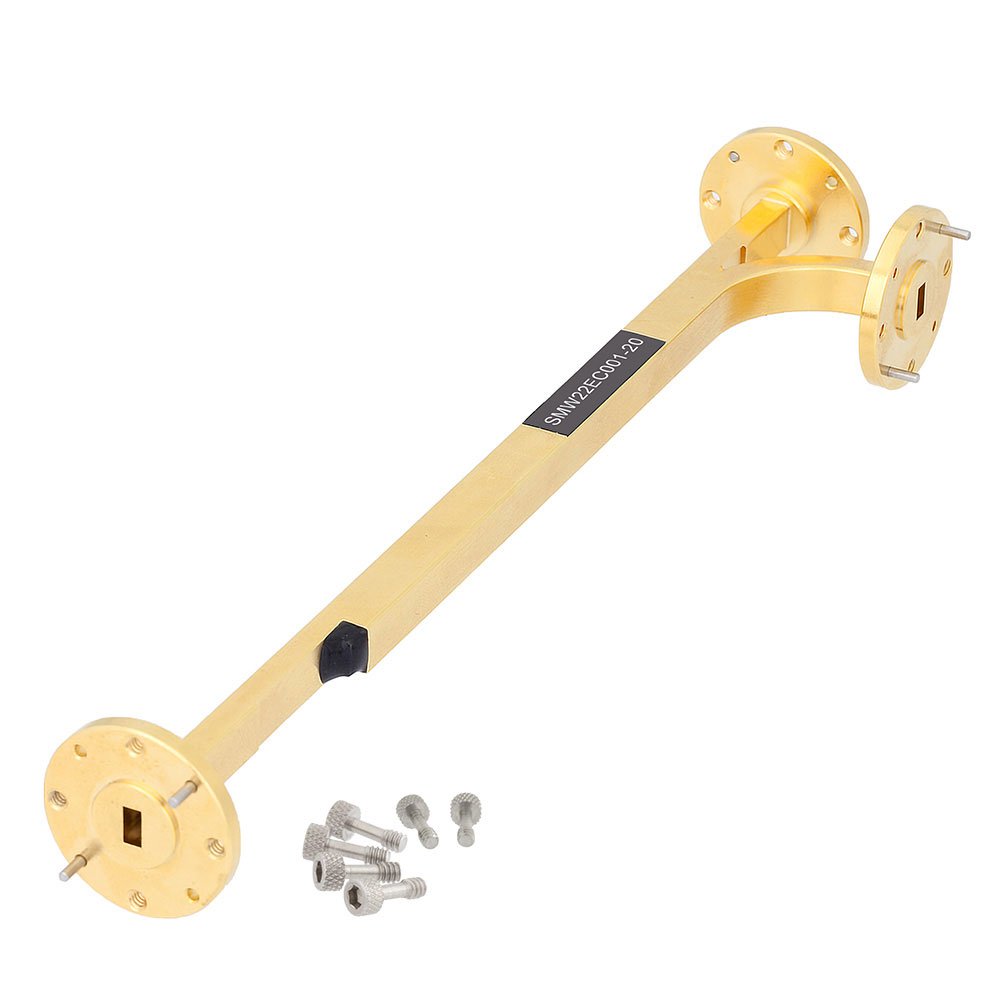

The SMW22EC001-20 is a general-purpose RF directional coupler manufactured by Fairview Microwave, designed for operation within the 33 GHz to 50 GHz frequency range. This component provides a nominal coupling factor of 20 dB with a tolerance of ±1 dB, ensuring precise signal sampling in high-frequency applications. It is engineered as a module suitable for integration into broader microwave systems requiring reliable power monitoring or signal separation across the specified millimeter-wave spectrum.

RF Directional Couplers Feature Summary

• Provides precise signal sampling through a standardized 20 dB coupling factor
• Operates effectively within the 33 GHz to 50 GHz millimeter-wave frequency band
• Designed as a modular component for integration into general-purpose RF systems

RF Directional Couplers Applications

• General-purpose RF signal monitoring and measurement
• Power level sampling in high-frequency transmission lines
• Signal separation for test and measurement equipment

RF Directional Couplers Procurement Notes

Verify the specific datasheet documentation for the SMW22EC001-20 to confirm mechanical dimensions, connector types, and detailed electrical performance curves prior to integration. Ensure that the operating environment remains within the specified 33 GHz to 50 GHz range to maintain the stated ±1 dB coupling accuracy. Cross-reference manufacturer specifications for any required mounting hardware or interface adapters necessary for system compatibility.

RF Directional Couplers Selection Notes

Select this component when a fixed 20 dB coupling ratio is required for signals between 33 GHz and 50 GHz. The ±1 dB tolerance defines the precision limits for power measurement applications. Consider the modular form factor for ease of integration into existing waveguide or coaxial setups. Evaluate thermal management requirements based on the expected power levels within the target application environment.

RF Directional Couplers Part Context

This part belongs to Fairview Microwave's catalog of RF directional couplers, specifically tailored for millimeter-wave frequencies. The SMW22EC001-20 serves as a specialized solution for engineers needing reliable signal coupling in the 33-50 GHz band. It complements other passive components in the manufacturer's portfolio by providing essential signal monitoring capabilities for advanced communication and radar systems.

RF Directional Couplers Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Verify compatibility with existing system interfaces before considering alternative models from different manufacturers.
