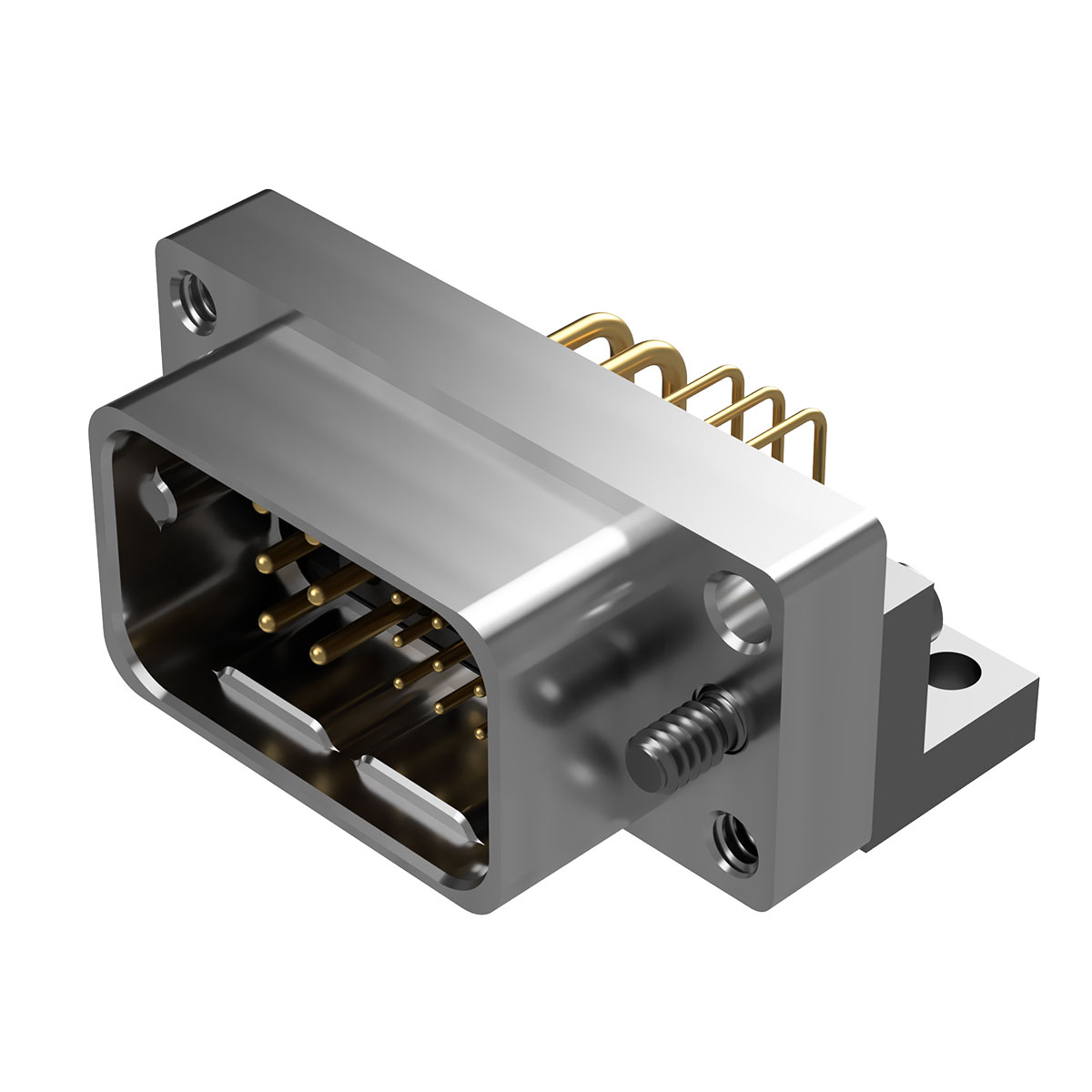

Specialized Backplane Connectors SMXA065-MA48C-T7B1 product image

SMXA065-MA48C-T7B1

$162.34

Description：CONNECTOR 18 POS PIN RIGHT ANGLE
Series：SP MAX
Mfr：Amphenol Positronic
Package：Tray

SKU:cdd4144e0c7e Category: Specialized Backplane Connectors Brand: Amphenol Positronic

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SMXA065-MA48C-T7B1 is listed in the Specialized Backplane Connectors range at ChipApex. The manufacturer field lists Amphenol Positronic. Its product description is CONNECTOR 18 POS PIN RIGHT ANGLE. Review the specifications below when checking this part for your BOM.

Specialized Backplane Connectors specifications for SMXA065-MA48C-T7B1

Description：CONNECTOR 18 POS PIN RIGHT ANGLE
Series：SP MAX
Mfr：Amphenol Positronic
Package：Tray
Connector Usage：-
Connector Type：Header, Male Pins
Connector Style：Power
Number of Positions：18
Number of Positions Loaded：All
Pitch：-
Number of Rows：4
Number of Columns：-
Mounting Type：Through Hole, Right Angle
Termination：Solder
Contact Layout, Typical：12 Signal, 6 Power
Features：Jackscrew
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Color：Black

Specialized Backplane Connectors datasheet and documents for SMXA065-MA48C-T7B1

SMXA065-MA48C-T7B1
