SMZJ3807BHE3_A/H

Description：DIODE ZENER 56V 1.5W DO214AA
Series：-
Mfr：Vishay General Semiconductor - Diodes Division
Package：Tape & Reel (TR)

SKU:01b27534fd3a Category: Single Zener Diodes Brand: Vishay General Semiconductor - Diodes Division

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SMZJ3807BHE3_A/H is listed in the Single Zener Diodes range at ChipApex. The manufacturer field lists Vishay General Semiconductor - Diodes Division. Its product description is DIODE ZENER 56V 1.5W DO214AA. Review the specifications below when checking this part for your BOM.

Single Zener Diodes specifications for SMZJ3807BHE3_A/H

Description：DIODE ZENER 56V 1.5W DO214AA
Series：-
Mfr：Vishay General Semiconductor - Diodes Division
Package：Tape & Reel (TR)
Voltage - Zener (Nom) (Vz)：56 V
Tolerance：±5%
Power - Max：1.5 W
Impedance (Max) (Zzt)：86 Ohms
Current - Reverse Leakage @ Vr：5 µA @ 42.6 V
Operating Temperature：-55°C ~ 150°C
Mounting Type：Surface Mount

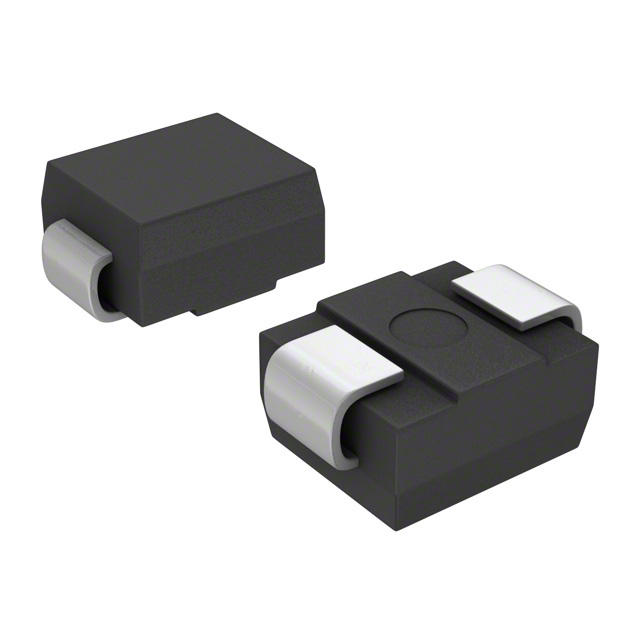

Package / Case：DO-214AA, SMB
Voltage - Forward (Vf) (Max) @ If：-
Grade：Automotive
Qualification：AEC-Q101

Single Zener Diodes datasheet and documents for SMZJ3807BHE3_A/H

SMZJ3807BHE3_A/H

Single Zener Diodes Overview

The SMZJ3807BHE3_A/H is a surface mount power voltage-regulating diode manufactured by Vishay General Semiconductor - Diodes Division. It operates within the SMZJ3788B through SMZJ3809B series and utilizes an SMB (DO-214AA) case configuration. The device provides a nominal Zener voltage of 56 V with a range spanning from 53.2 V to 58.8 V. It supports a maximum steady-state power dissipation of 1500 mW at a lead temperature of 75 °C. The component features a glass passivated chip junction, low Zener impedance, and low regulation factor. It is qualified under AEC-Q101 standards for automotive applications.

Single Zener Diodes Feature Summary

Glass passivated chip junction
Low Zener impedance
Low regulation factor
AEC-Q101 qualified

Single Zener Diodes Applications

General purpose regulation
Industrial applications
Protection applications

Single Zener Diodes Procurement Notes

Verify the exact part number against official manufacturer documentation before procurement. Confirm that the HE3 suffix indicates RoHS compliance and AEC-Q101 qualification. Ensure compatibility with automated placement equipment due to the low profile package design. Validate electrical parameters against specific application requirements using the provided datasheet curves.

Single Zener Diodes Selection Notes

Select this component when a 56 V Zener voltage is required in a surface mount SMB package. Consider the 1500 mW power dissipation capability and the operating temperature range of -55 °C to +150 °C. Verify that the low Zener impedance meets circuit stability requirements. Confirm automotive qualification needs align with the AEC-Q101 standard.

Single Zener Diodes Part Context

This component belongs to the SMZJ3788B through SMZJ3809B series of surface mount power voltage-regulating diodes. The series covers Zener voltages from 9.1 V to 68 V. All devices share the same SMB (DO-214AA) mechanical outline and feature glass passivated chip junctions. The series is designed for general purpose regulation, industrial, and protection applications.
