SN10-400J

Overview

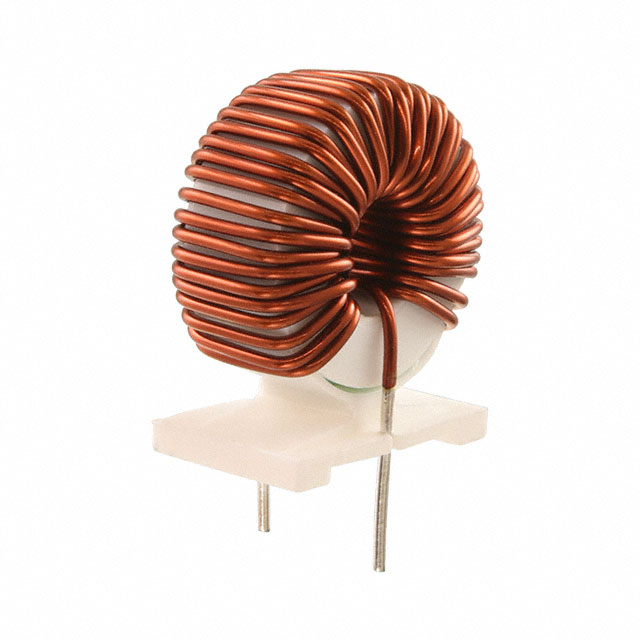

The KEMET SN10-400J is a through-hole common mode filter inductor designed for AC line applications. It features a nominal inductance of 72 μH and supports a maximum current of 3 A with a maximum DC resistance of 56 mΩ. The component operates within a temperature range of -25°C to +105°C.

Feature Summary

• Provides normal mode filtering for AC lines
• Through-hole mounting configuration
• High current handling capability

Applications

• AC line noise suppression
• Common mode interference reduction
• Power supply input filtering

Procurement Notes

Verify the specific datasheet version and manufacturer specifications before procurement. Confirm that the inductance, current rating, and physical dimensions align with the target circuit requirements. Ensure compliance with relevant safety standards for the intended application environment.

Selection Notes

Select this component when normal mode filtering is required for AC lines with currents up to 3 A. Consider the low DC resistance for minimal voltage drop and the operating temperature range for thermal stability in power electronics designs.

Part Context

This inductor belongs to KEMET's SN-J series of AC line filters. These components are engineered for robust performance in power supply circuits, offering reliable noise attenuation while maintaining compact form factors suitable for various industrial and consumer electronic applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
