SN10-500J

Overview

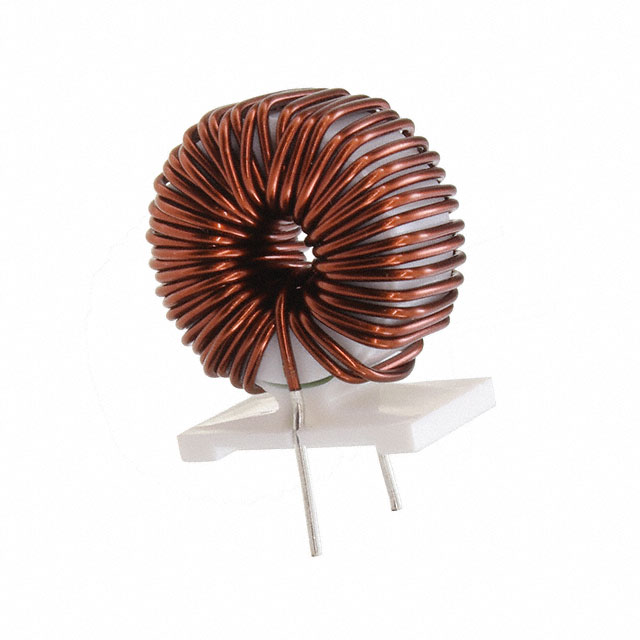

The KEMET SN10-500J is a differential mode choke from the SN-J series, designed for through-hole mounting. It features an inductance of 110 µH with a maximum DC current rating of 3 A and a typical DC resistance of 71 mΩ. The component utilizes an iron core and measures 21 mm in diameter by 12 mm in length, with a 10 mm lead pitch and 0.8 mm lead diameter. It operates within a temperature range of -25°C to +105°C and complies with RoHS standards.

Feature Summary

• Provides differential mode filtering for power circuits
• Utilizes an iron core for stable inductance performance
• Designed for through-hole PCB integration

Applications

• Power supply input filtering
• EMI suppression in electronic equipment
• Differential mode noise reduction

Procurement Notes

Verify the specific suffix 'J' against official KEMET documentation to confirm terminal plating or tolerance specifications. Ensure the required 10 mm lead pitch and 21 mm diameter fit the target PCB layout. Confirm compliance with relevant safety certifications if used in regulated applications.

Selection Notes

Select this component when a 110 µH inductance and 3 A current handling capability are required for differential mode filtering. Consider the physical dimensions and through-hole mounting style during mechanical design. Evaluate thermal management requirements given the operating temperature range up to 105°C.

Part Context

The SN10-500J belongs to KEMET's SN-J series of differential mode chokes. This series is characterized by its use of iron cores and radial leaded construction, offering a compact solution for common and differential mode noise suppression in various power electronics applications.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
