SN10P-800

$2.69

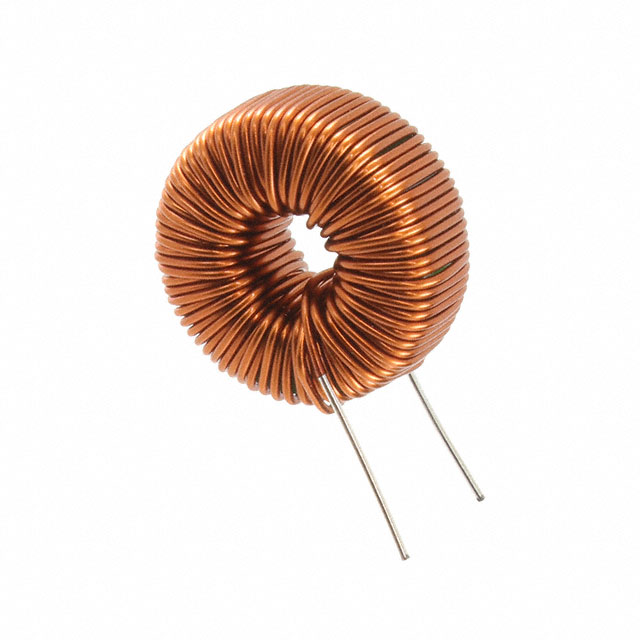

Description：NMC 297.0UH 2.5A 0.1900 OHM TH
Series：SN
Mfr：KEMET
Package：Tray

SKU:ba8be238e465 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：NMC 297.0UH 2.5A 0.1900 OHM TH
Series：SN
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：-
DC Resistance (DCR) (Max)：-
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-25°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：-
Height (Max)：-
Package / Case：Vertical, No Base, 2 PC Pin
Inductance @ Frequency：297 µH @ 100 kHz
Qualification：-
Grade：-

Download product information

SN10P-800

Overview

The KEMET SN10P-800 is a through-hole iron core wire inductor from the SN-J series. It features a 297 µH inductance with a maximum DC current rating of 2.5 A and a low DC resistance of 0.19 mΩ. The component utilizes a radial leaded package with a 20 mm lead pitch and operates within a temperature range of -25°C to 105°C.

Feature Summary

Utilizes an iron core for high saturation performance
Low DC resistance design minimizes power loss
Through-hole mounting for robust mechanical stability

Applications

Power supply filtering circuits
EMI suppression in AC/DC converters
General-purpose chokes in industrial electronics

Procurement Notes

Verify the specific manufacturer part number against official KEMET documentation to ensure compatibility with your circuit requirements. Confirm that the physical dimensions, specifically the lead pitch and core diameter, match your PCB layout constraints before finalizing procurement decisions.

Selection Notes

Select this component when high current handling and low impedance are required in a through-hole application. The iron core construction supports significant magnetic flux without rapid saturation, making it suitable for applications where space allows for larger form factors compared to surface-mount alternatives.

Part Context

This inductor belongs to the SN-J series, which is designed for general-purpose power filtering. The series emphasizes durability and consistent electrical characteristics across varying load conditions, catering to industrial and consumer electronic markets requiring reliable passive components.

Replacement Considerations

Consult official KEMET substitution guides for verified equivalents. Ensure any replacement maintains identical inductance, current ratings, and physical footprint to guarantee circuit integrity.
