SN12HP-2201

$2.34

Description：NMC 20.0UH 10.0A 0.0130 OHM TH
Series：SN
Mfr：KEMET
Package：Tray

SKU:4bbac01ae27f Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：NMC 20.0UH 10.0A 0.0130 OHM TH
Series：SN
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：-
DC Resistance (DCR) (Max)：-
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-25°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：-
Height (Max)：-
Package / Case：Vertical, No Base, 2 PC Pin
Inductance @ Frequency：20 µH @ 100 kHz
Qualification：-
Grade：-

Download product information

SN12HP-2201

Overview

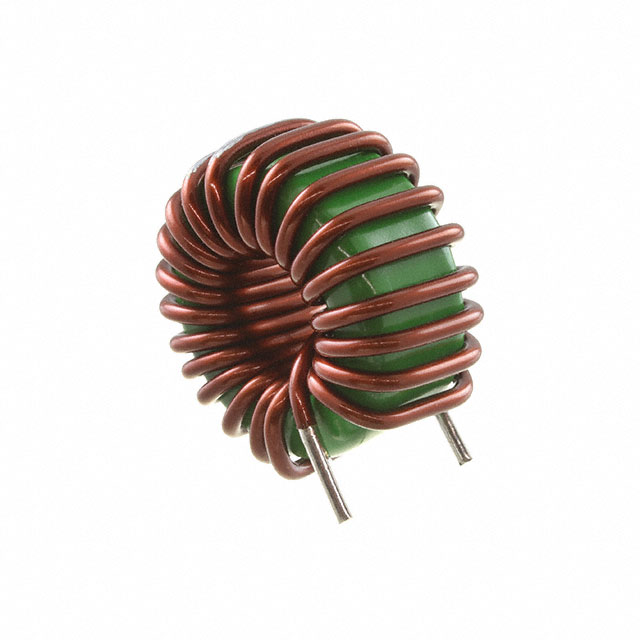

The KEMET SN12HP-2201 is a differential mode choke designed for through-hole mounting. It features a rated inductance of 20 µH and supports an operating current of 10 A with a maximum DC resistance of 13 µΩ. The component utilizes ferrite core material and operates within a temperature range of -25°C to +105°C. Physical dimensions include a height of 26 mm, suitable for standard power applications.

Feature Summary

Through-hole construction for robust mechanical mounting
Ferrite core design for effective magnetic performance
High current handling capability up to 10 A

Applications

Power supply filtering
Home appliance circuits
AC line filters

Procurement Notes

Verify the specific part number against official KEMET documentation to confirm technical specifications. Ensure that the required inductance, current rating, and physical dimensions align with the target circuit design requirements before procurement.

Selection Notes

Select this component when a through-hole differential mode choke is required for high-current applications. Consider the 20 µH inductance and 10 A current rating to ensure compatibility with the intended power stage and filtering needs.

Part Context

This component belongs to the KEMET SN Coils series, which offers a range of rated currents from 500 mA to 20 A and inductances from 1.5 µH to 550 µH. These coils are typically used in normal mode filter applications for various electronic devices.
