Product Detailed Parameters
- Description：NMC 550.0UH 3.0A 0.0850 OHM TH
- Series：SN
- Mfr：KEMET
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-25°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：-
- Height (Max)：-
- Package / Case：Vertical, No Base, 2 PC Pin
- Inductance @ Frequency：550 µH @ 100 kHz
- Qualification：-
- Grade：-
Download product information
Overview

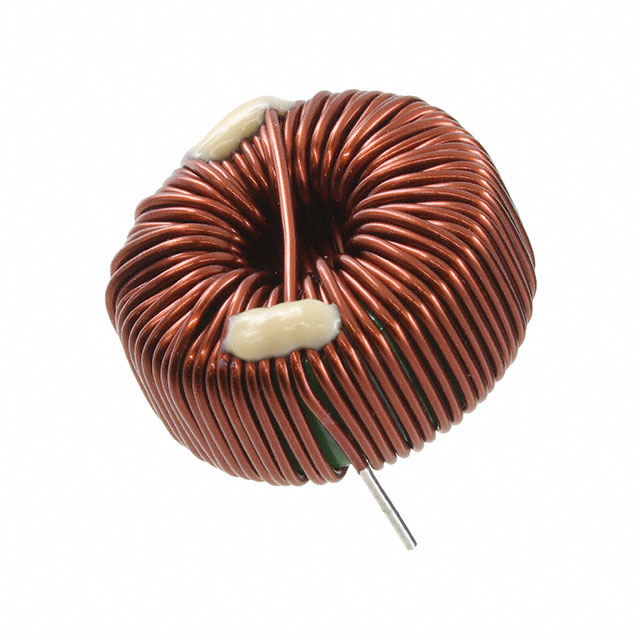

The KEMET SN14P-770H is a through-hole leaded inductor from the SN series, designed for AC line filtering applications. It features an iron core and provides an inductance of 550 µH at 100 kHz. The component supports a maximum DC current rating of 3 A with a maximum DC resistance of 0.085 Ω. It operates within a temperature range of -40°C to +105°C and complies with RoHS standards.
Feature Summary
- Iron core construction for stable magnetic performance
- Through-hole mounting for secure PCB integration
- AC line filter design for noise suppression
Applications
- AC line filtering circuits
- Common mode choke applications
- Power supply input stages
Procurement Notes
Verify the manufacturer part number SN14P-770H against official KEMET documentation to confirm specifications. Ensure compatibility with required inductance, current rating, and temperature range. Check for RoHS compliance status and SVHC declarations as per regulatory requirements. Confirm package type and pin configuration match the target design.
Selection Notes
Select this component when a 550 µH inductance with 3 A current handling is required for AC line filtering. Consider the iron core material for specific magnetic characteristics. Evaluate the through-hole form factor against available board space and assembly methods. Verify operating temperature limits suit the environmental conditions.
Part Context
This inductor belongs to KEMET's SN series, which offers various inductance values for power line filtering. The SN14P-770H specifically targets applications requiring moderate inductance with high current capability. Its leaded design facilitates manual or wave soldering processes on printed circuit boards.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided data.
