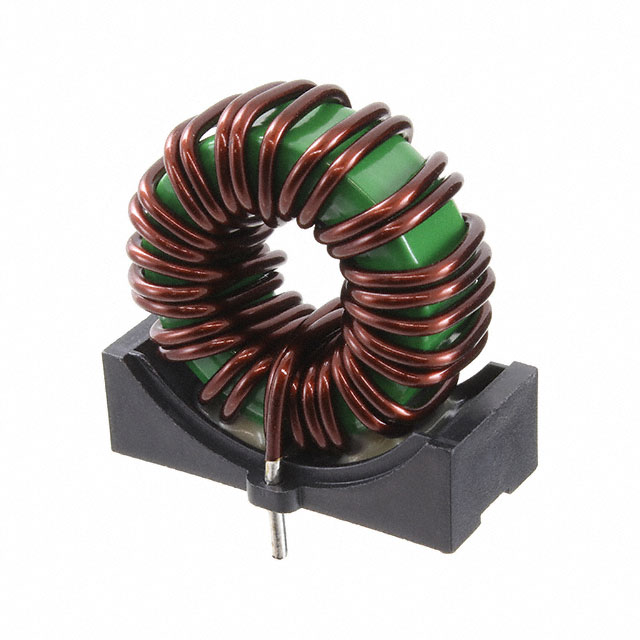

SN16-300JA

$6.13

Description：CMC 60UH 8A 2LN TH
Series：SN
Mfr：KEMET
Package：Tray

SKU:f87f6e150533 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 60UH 8A 2LN TH
Series：SN
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：8A
DC Resistance (DCR) (Max)：21mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-25°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.378" L x 0.748" W (35.00mm x 19.00mm)
Height (Max)：1.555" (39.50mm)
Package / Case：Vertical, 2 PC Pin
Inductance @ Frequency：60 µH @ 100 kHz
Qualification：-
Grade：-

Download product information

SN16-300JA

Overview

The KEMET SN16-300JA is a through-hole differential mode choke belonging to the SN-JA series. It features an inductance of 60 µH and supports a rated current of 8 A with a DC resistance of 21 mΩ. The component utilizes a standard core design suitable for power line filtering applications.

Feature Summary

Provides differential mode noise suppression for power circuits
Designed for through-hole mounting on printed circuit boards
Constructed with a standard core material for reliable performance

Applications

Power supply input filtering
Electromagnetic interference suppression in electronic equipment
General purpose AC/DC line chokes

Procurement Notes

Verify the specific manufacturer datasheet for the SN16-300JA to confirm exact mechanical dimensions, thermal ratings, and compliance certifications prior to integration. Ensure the selected component matches the required current handling and inductance specifications for the target application environment.

Selection Notes

Select this component when a 60 µH differential mode choke with an 8 A current rating is required. Consider the physical size constraints and through-hole mounting requirements. Evaluate the DC resistance impact on system efficiency and ensure the operating temperature range aligns with the device's specified limits.

Part Context

This part belongs to KEMET's SN-JA series of differential mode chokes. These components are engineered for general-purpose power line filtering. The series offers standardized form factors for easy integration into various electronic assemblies requiring common or differential mode noise reduction.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative components by matching inductance, current rating, and physical footprint.
