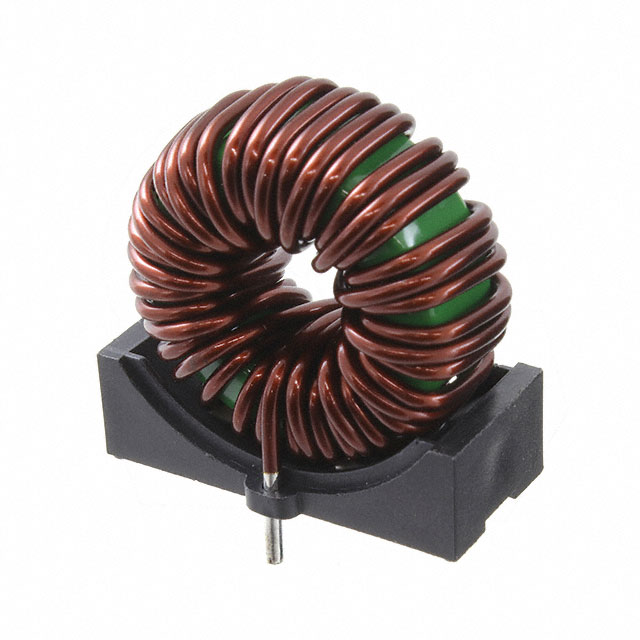

SN16-400JA

$4.71

Description：CMC 108UH 8A 2LN TH
Series：SN
Mfr：KEMET
Package：Tray

SKU:845d521f5397 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 108UH 8A 2LN TH
Series：SN
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：8A
DC Resistance (DCR) (Max)：27mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-25°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.378" L x 0.787" W (35.00mm x 20.00mm)
Height (Max)：1.555" (39.50mm)
Package / Case：Vertical, 2 PC Pin
Inductance @ Frequency：108 µH @ 100 kHz
Qualification：-
Grade：-

Download product information

SN16-400JA

Overview

The KEMET SN16-400JA is a through-hole common mode choke belonging to the SN series. It features an inductance of 108 µH and supports a maximum DC current of 8 A. The component has a maximum DC resistance of 27 mΩ. It operates within a temperature range of -25°C to +105°C.

Feature Summary

Provides common mode noise suppression for single-channel applications
Designed for robust through-hole PCB mounting
Capable of handling high operating currents up to 8 A

Applications

Common mode filtering in power supply circuits
EMI suppression in industrial equipment
Signal integrity protection in automotive electronics

Procurement Notes

Verify the specific part number SN16-400JA against official KEMET documentation to confirm electrical parameters and mechanical dimensions. Ensure compatibility with required current ratings and thermal environments before integration into final designs.

Selection Notes

Select this component when high current handling capability is required for common mode noise reduction. Verify that the 108 µH inductance meets circuit requirements and that the 27 mΩ DCR aligns with efficiency targets. Confirm through-hole footprint availability on the target PCB layout.

Part Context

This component is part of KEMET's SN series of leaded inductors, designed for general-purpose filtering applications. The series offers various inductance values and current ratings to suit different power and signal processing needs in electronic systems.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult KEMET technical support or authorized distributors for verified cross-reference options.
