SN16P-130

$3.56

Description：NMC 10.0UH 10.0A 0.0050 OHM TH
Series：SN
Mfr：KEMET
Package：Tray

SKU:f4979c6b67ed Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：NMC 10.0UH 10.0A 0.0050 OHM TH
Series：SN
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：-
DC Resistance (DCR) (Max)：-
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-25°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：-
Height (Max)：-
Package / Case：Vertical, No Base, 2 PC Pin
Inductance @ Frequency：10 µH @ 100 kHz
Qualification：-
Grade：-

Download product information

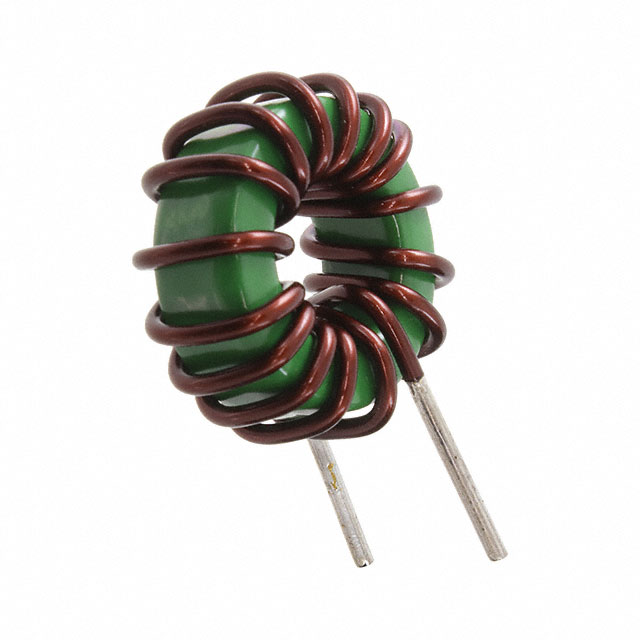

SN16P-130

Overview

The KEMET SN16P-130 is a vertical, through-hole common mode choke designed for power line filtering. It features an inductance of 10 µH at 100 kHz and supports a maximum DC current of 10 A. The component exhibits a low direct current resistance (DCR) of 0.005 Ω. It operates within a temperature range of -25°C to +105°C and utilizes an iron core construction.

Feature Summary

Vertical pin configuration without base for PCB mounting
High current handling capability suitable for power lines
Low impedance design for efficient signal integrity

Applications

Power line EMI suppression
Common mode noise filtering in electronic circuits
Signal integrity protection in high-current applications

Procurement Notes

Verify the specific datasheet version to confirm RoHS compliance status and exact physical dimensions. Ensure the operating environment remains within the specified -25°C to +105°C range. Confirm that the 10 A current rating aligns with the application's peak load requirements to prevent saturation or thermal issues.

Selection Notes

Select this component when high current capacity and low DCR are critical for power line filtering. The vertical form factor aids in space-constrained PCB layouts. Consider the iron core material properties for frequency response characteristics compared to ferrite alternatives.

Part Context

This part belongs to the KEMET SN series of common mode chokes. These components are engineered for robust performance in industrial and commercial electronics. The SN series emphasizes durability and consistent electrical characteristics across varying environmental conditions.

Replacement Considerations

Consult official KEMET documentation for verified substitute part numbers. Cross-referencing requires matching inductance, current rating, and physical footprint specifications.
