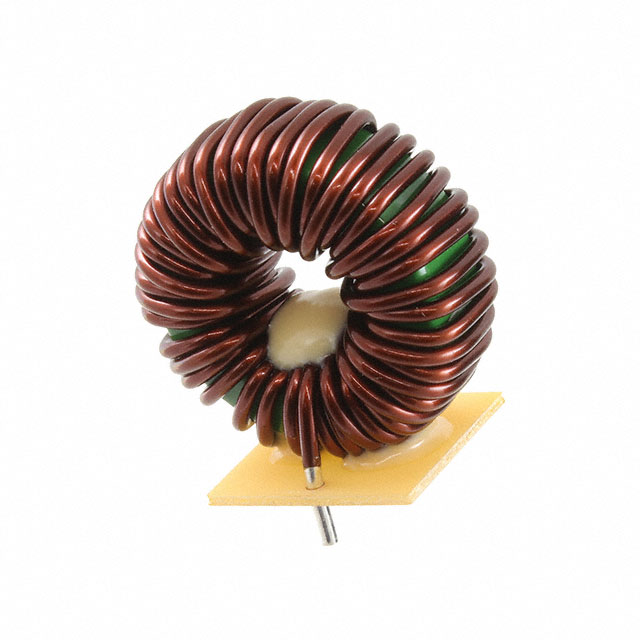

SN16P-400J

$4.35

Description：NMC 108.0UH 8.0A 0.0270 OHM TH
Series：SN
Mfr：KEMET
Package：Bulk

SKU:73991d90bb3b Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：NMC 108.0UH 8.0A 0.0270 OHM TH
Series：SN
Mfr：KEMET
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：-
DC Resistance (DCR) (Max)：-
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-25°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：-
Height (Max)：-
Package / Case：Vertical, No Base, 2 PC Pin
Inductance @ Frequency：108 µH @ 100 kHz
Qualification：-
Grade：-

Download product information

SN16P-400J

Overview

The KEMET SN16P-400J is a through-hole common mode choke belonging to the SN-J series. It provides an inductance of 108 µH at 100 kHz with a current rating of 8 A and a DC resistance of 27 mOhms. The component operates within a temperature range of -25°C to +120°C.

Feature Summary

Provides effective common mode noise suppression for AC line applications
Features low DC resistance to minimize power loss
Designed for robust through-hole mounting

Applications

AC line filtering
Power supply input stages
EMI suppression circuits

Procurement Notes

Verify the specific part number against official KEMET documentation to confirm compatibility with your circuit requirements. Ensure that the thermal and electrical ratings meet your design specifications before procurement.

Selection Notes

Select this component for applications requiring common mode noise reduction on AC lines. Consider the 8 A current rating and 27 mOhm resistance when designing for efficiency and thermal management.

Part Context

This component is part of the KEMET SN-J series, which offers through-hole common mode chokes designed for general EMI filtering. The series supports various inductance values and current ratings for different power levels.

Replacement Considerations

Consult official KEMET substitution guides or datasheets for verified alternative part numbers. Do not assume cross-compatibility with other manufacturers' components without verifying electrical and mechanical parameters.
