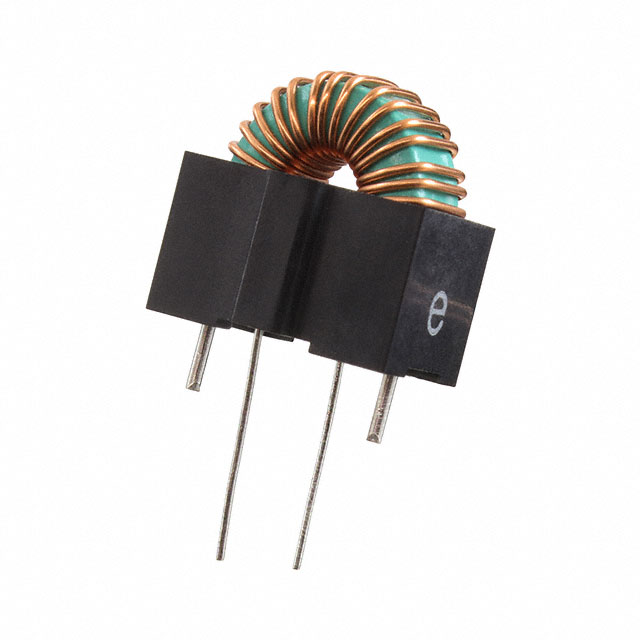

SN5-300JB

$1.50

Description：CMC 25UH 1A 2LN TH
Series：SN
Mfr：KEMET
Package：Bulk

SKU:63dfa78ed13e Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 25UH 1A 2LN TH
Series：SN
Mfr：KEMET
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1A
DC Resistance (DCR) (Max)：80mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-25°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：-
Height (Max)：0.736" (18.70mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：25 µH @ 100 kHz
Qualification：-
Grade：-

Download product information

SN5-300JB

Overview

The KEMET SN5-300JB is a through-hole common mode filter choke belonging to the SN-JB series. It features an inductance of 25 µH and supports a maximum DC current of 1 A. The component utilizes an iron core and radial wire terminals with a 20 mm lead pitch. It operates within a temperature range of -25°C to 105°C and complies with RoHS standards.

Feature Summary

Provides common mode noise suppression for AC line applications
Designed for through-hole mounting with radial leads
Utilizes an iron core construction for magnetic performance

Applications

AC power line filtering
Electromagnetic interference (EMI) suppression
Normal mode filter circuits

Procurement Notes

Verify availability status as the manufacturer has scheduled this part for obsolescence. Confirm specific electrical parameters against the official datasheet, noting discrepancies in reported DC resistance values across different sources. Ensure the required current rating aligns with system design constraints before procurement.

Selection Notes

Select this component for applications requiring 25 µH common mode inductance with a 1 A current rating. Consider the physical dimensions and through-hole mounting requirements. Verify that the operating temperature range meets environmental specifications. Check for end-of-life status when planning long-term production cycles.

Part Context

This component is part of the KEMET SN-JB series of common mode filter chokes. These components are designed for AC line filtering applications. The series offers various inductance and current ratings to suit different power supply noise suppression needs.

Replacement Considerations

Check for direct substitutes within the SN-JB series or other KEMET common mode choke lines. Verify equivalent inductance, current rating, and physical footprint. Consult official replacement guides for discontinued parts.
