Product Detailed Parameters
- Description：NMC 25.0UH 2.0A 0.0460 OHM TH
- Series：SN
- Mfr：KEMET
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-25°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.669" Dia (17.00mm)
- Height (Max)：0.354" (9.00mm)
- Package / Case：Horizontal, 2 PC Pin
- Inductance @ Frequency：25 µH @ 100 kHz
- Qualification：-
- Grade：-
Download product information
Overview

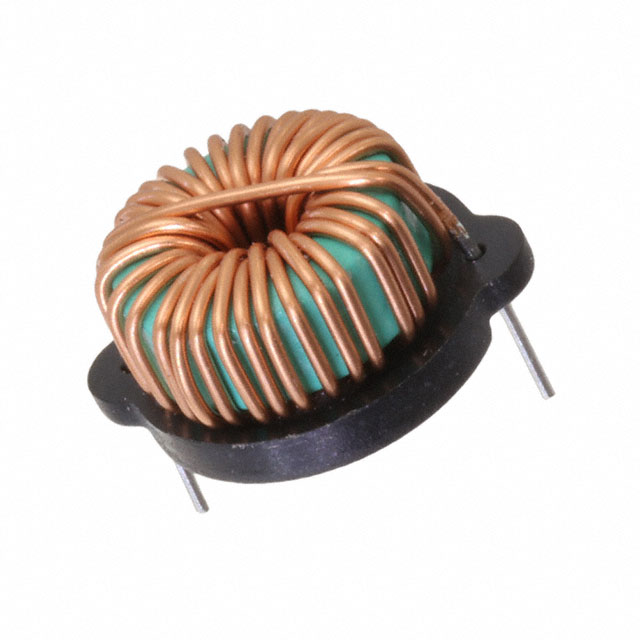

The KEMET SN5-30P2 is a through-hole common mode choke belonging to the SN-P2 series. It features an iron core and is designed for power line filtering applications. The component provides an inductance of 25 µH at 100 kHz with a DC current rating of 2 A. Its maximum DC resistance is 46 mΩ, and it operates within a temperature range of -25°C to +105°C. The device utilizes a horizontal terminal base type configuration.
Feature Summary
- Common mode noise suppression for two-line power circuits
- Ferrite/iron core construction for stable performance
- Through-hole mounting for robust mechanical attachment
Applications
- Power supply input filtering
- EMI suppression in AC/DC converters
- General purpose noise reduction in electronic equipment
Procurement Notes
Verify the exact datasheet version (e.g., V01) to confirm specifications such as inductance tolerance and temperature rise limits. Ensure the ordering suffix matches the required leaded package style. Cross-reference the manufacturer part number with authorized distributors to avoid counterfeit components. Confirm that the 2A current rating meets the specific application requirements before procurement.
Selection Notes
Select this component when a 25 µH common mode choke is required for through-hole assembly. The 2A current rating suits moderate power applications. Consider the 46 mΩ DC resistance for efficiency calculations. The -25°C to +105°C operating range allows use in standard industrial environments. Verify pin spacing and board layout compatibility with the horizontal terminal design.
Part Context
The SN5-30P2 is part of KEMET's SN-P2 series of differential mode SN coils. This series is characterized by its standard filter characteristics and ferrite core material. The component is categorized under normal mode SN coils for power applications. It serves as a passive electromagnetic interference suppression device.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult KEMET technical support or authorized distributors for equivalent components with matching inductance, current rating, and physical dimensions.
