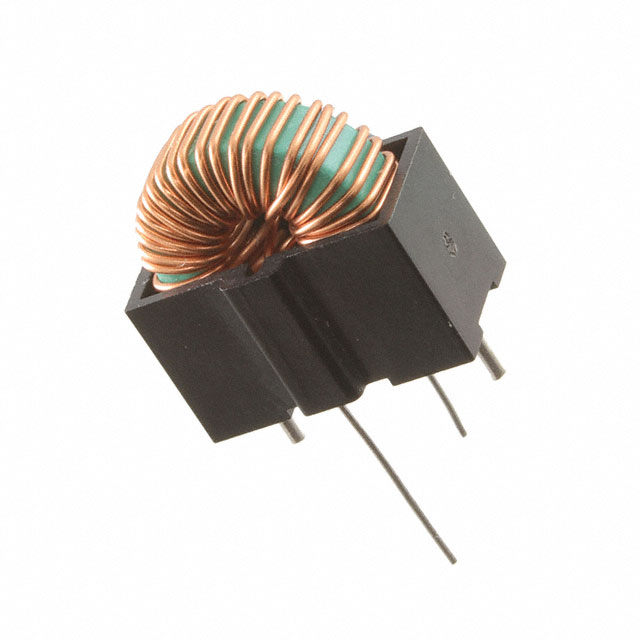

SN5-450JB

$2.60

Description：CMC 64UH 1A 2LN TH
Series：SN
Mfr：KEMET
Package：Bulk

SKU:eb4ec7a683ba Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 64UH 1A 2LN TH
Series：SN
Mfr：KEMET
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1A
DC Resistance (DCR) (Max)：110mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-25°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：-
Height (Max)：0.736" (18.70mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：64 µH @ 100 kHz
Qualification：-
Grade：-

Download product information

SN5-450JB

Overview

The KEMET SN5-450JB is a differential mode choke from the SN-JB series, designed for through-hole mounting. It features an inductance of 64 µH at 100 kHz and supports a maximum DC current of 1 A with a maximum DC resistance of 110 mOhms. This component functions as a normal mode filter suitable for power applications requiring common mode suppression.

Feature Summary

Provides differential mode filtering capability within the SN-JB series architecture
Supports through-hole installation for standard PCB integration
Engineered for normal mode operation in power circuit environments

Applications

Power supply input filtering
Differential mode noise suppression
General electronic equipment EMI mitigation

Procurement Notes

Verify the specific part number against official KEMET documentation to confirm availability and technical specifications. Ensure compatibility with required current ratings and inductance values for the target application before procurement.

Selection Notes

Select this component when differential mode filtering is required alongside through-hole mounting constraints. Evaluate the 1 A current rating and 110 mOhm resistance against circuit load requirements to ensure adequate performance without excessive voltage drop or thermal issues.

Part Context

The SN5-450JB belongs to the KEMET SN-JB series of differential mode chokes. These components are engineered for through-hole applications, offering reliable performance in power electronics where normal mode interference needs attenuation. The series provides standardized solutions for common power filtering tasks.

Replacement Considerations

Consult official KEMET substitution guides for verified alternatives. Cross-reference inductance, current rating, and physical dimensions to ensure functional equivalence in existing designs.
