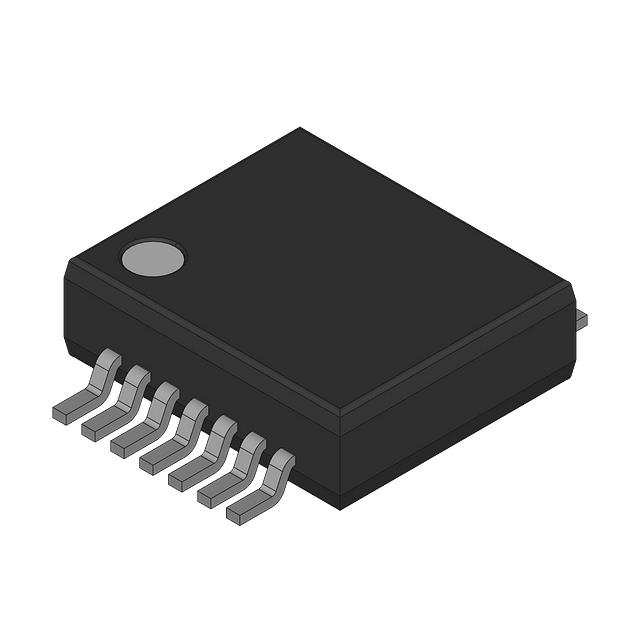

SN74ACT00DB

$0.18

Description：IC GATE NAND 2-INP 14SSOP
Series：*
Mfr：Texas Instruments
Package：Bulk

SKU:db1f5a694fb1 Category: Gates and Inverters Brand: Texas Instruments

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC GATE NAND 2-INP 14SSOP
Series：*
Mfr：Texas Instruments
Package：Bulk
Logic Type：-
Number of Circuits：-
Number of Inputs：-
Features：-
Voltage - Supply：-
Current - Quiescent (Max)：-
Current - Output High, Low：-
Input Logic Level - Low：-
Input Logic Level - High：-
Max Propagation Delay @ V, Max CL：-
Operating Temperature：-
Mounting Type：-
Supplier Device Package：-
Package / Case：-
Grade：-
Qualification：-

Download product information

SN74ACT00DB

Overview

The SN74ACT00DB is a quadruple 2-input positive-NAND gate from the Texas Instruments SN74ACT00 series. It operates within a supply voltage range of 4.5 V to 5.5 V and features TTL-compatible inputs with CMOS outputs. The device provides a low-level output current of 24 mA and a high-level output current of -24 mA, ensuring robust drive capability. Propagation delay is specified at 9.5 ns. It functions reliably across an operating temperature range of -40°C to +85°C and utilizes a SOIC-14 surface-mount package.

Feature Summary

Integrates four independent 2-input NAND logic gates in a single package
Features TTL-compatible input thresholds for direct interfacing with legacy logic families
Provides symmetrical 24 mA output drive strength for both high and low states
Operates on a standard 5 V supply rail with defined AC switching characteristics

Applications

General-purpose digital logic signal processing
Data acquisition systems requiring NAND functionality
Industrial control logic circuits
Communication equipment interface buffering

Procurement Notes

Verify the specific suffix 'DB' corresponds to the SOIC-14 package variant when sourcing. Confirm that the required propagation delay and output current specifications align with the target circuit design constraints. Ensure compatibility with the 4.5 V to 5.5 V operating voltage range for the intended application environment.

Selection Notes

Select this component when a quad NAND configuration is required with TTL-compatible inputs. It serves as a suitable replacement for older 74LS00 equivalents where higher speed and lower power consumption are needed. Consider the SOIC-14 footprint for PCB layout compatibility. Verify thermal management requirements for the specific operating temperature range.

Part Context

This part belongs to the SN74ACT00 family of quadruple 2-input positive-NAND gates manufactured by Texas Instruments. The ACT series combines the speed of advanced CMOS technology with TTL-compatible inputs. This specific designation indicates the standard commercial grade version housed in a small-outline integrated circuit package.
