SN74AUP1G32DPWR

Overview

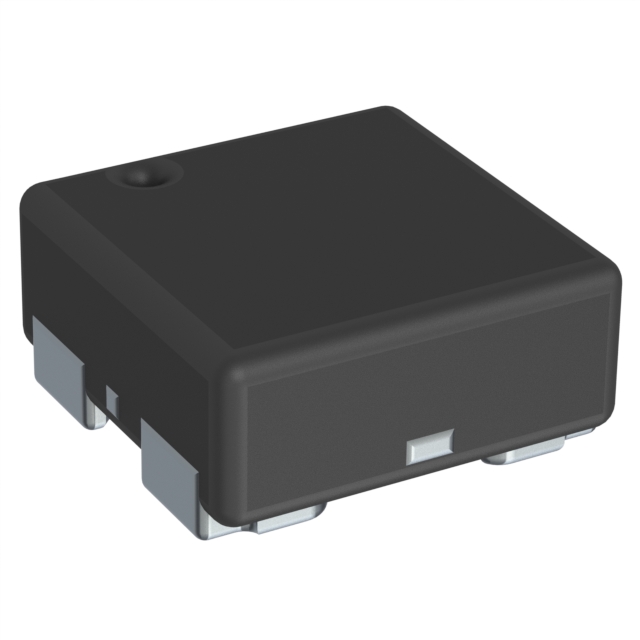

The SN74AUP1G32DPWR is a single-channel, two-input positive OR gate from the Texas Instruments 74AUP series. It operates within a supply voltage range of 0.8V to 3.6V and features low static current consumption with a maximum of 500 nA. The device provides output drive currents of 4mA for both high and low states. It exhibits a maximum propagation delay of 6.4ns at 3.3V with a 30pF load. Operating temperatures span from -40°C to 85°C. The component is housed in a compact 4-X2SON package measuring 0.8mm by 0.8mm.

Feature Summary

• Ultra-low power consumption suitable for battery-operated applications
• High-speed logic performance with minimal propagation delay
• Wide operating voltage range supporting sub-1V operation
• Compact surface-mount packaging for space-constrained designs

Applications

• Portable consumer electronics requiring low power logic
• Battery-powered mobile devices and handheld instruments
• Automotive infotainment and body control modules
• Industrial control systems with strict size limitations

Procurement Notes

Verify the complete part number including suffixes to ensure correct packaging and temperature grade. Confirm RoHS compliance status matches project requirements. Check manufacturer documentation for any recent product change notices affecting pinout or electrical characteristics. Ensure ESD handling procedures are followed during assembly due to sensitive CMOS inputs.

Selection Notes

Select this component when designing circuits that require efficient logical OR operations at very low voltages. Compare against other AUP series variants if different input counts or package types are needed. Consider the specific propagation delay requirements relative to the system clock speed. Evaluate thermal management needs based on the small footprint and expected switching frequency.

Part Context

This device belongs to the 74AUP family of ultra-low-power CMOS logic gates. It shares functional compatibility with other members of the series while offering optimized power-performance trade-offs. The X2SON package represents a modern alternative to traditional SOT packages, providing improved thermal dissipation and smaller board area utilization for dense PCB layouts.

Replacement Considerations

SN74AUP1G32DCKT offers identical functionality in an SC-70-5 package.
