SN74LVC1G14DBVR-EV

Inverter Gates Overview

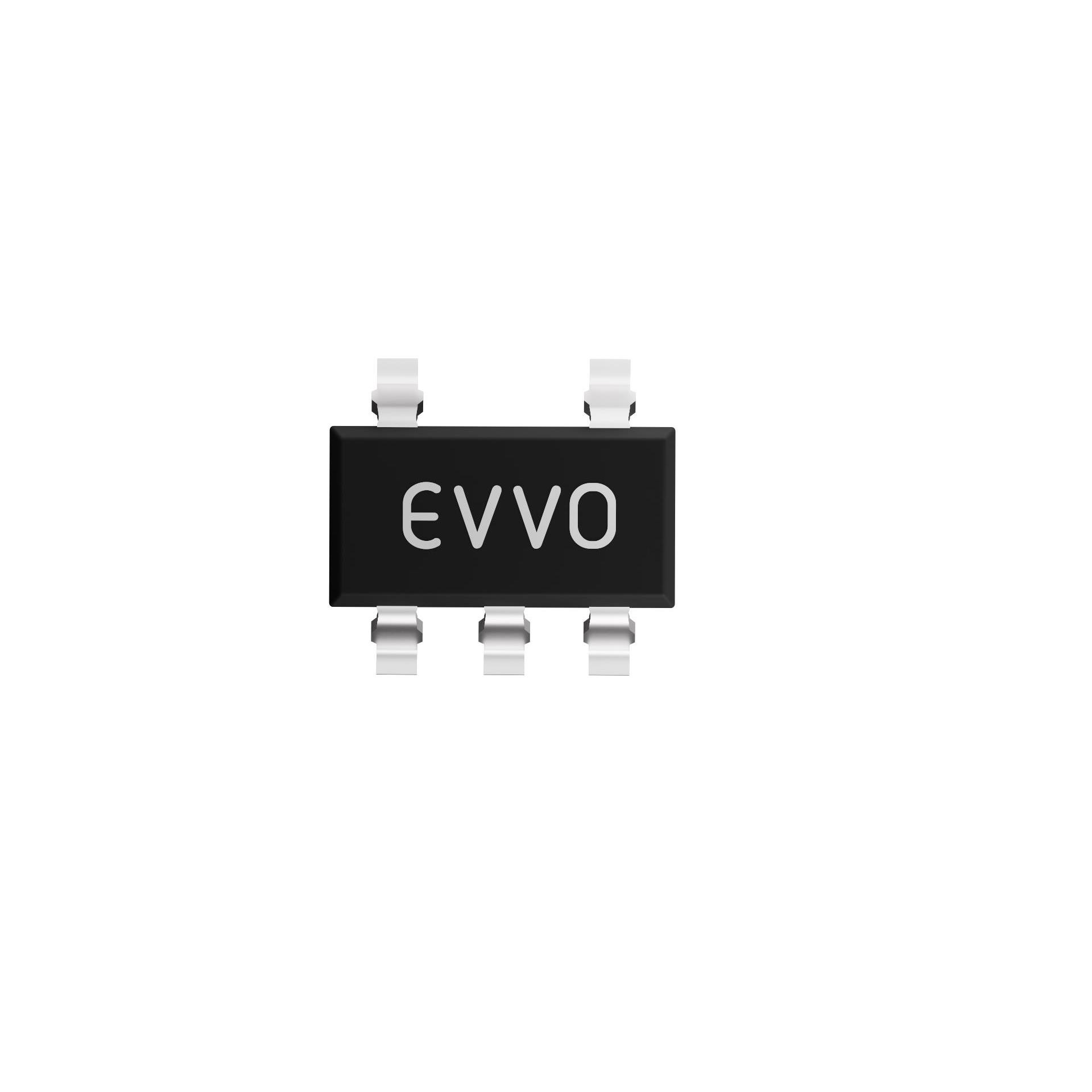

The SN74LVC1G14DBVR-EV is a single Schmitt trigger inverter manufactured by EVVO. It operates within a supply voltage range of 1.65 V to 5.5 V and utilizes an advanced CMOS process for low power consumption. The device features high output drive capability, exceeding 32 mA at VCC = 4.5 V, and maintains a typical quiescent current of 0.1 uA. It is housed in a SOT-23-5 (DBV) package with five pins: Input (A), Output (Y), Ground (GND), Power Supply (VCC), and a No Connect pin.

Inverter Gates Feature Summary

• Schmitt trigger input functionality provides noise immunity and signal conditioning for slow or noisy signals through defined hysteresis thresholds.
• High output drive capability ensures robust signal transmission across the specified operating voltage range.
• Low quiescent power consumption supports energy-efficient operation suitable for battery-powered applications.

Inverter Gates Applications

• Portable audio interfaces
• Digital television systems
• Solid state hard disk drives
• Intelligent wearable devices such as wireless headphones and smart watches

Inverter Gates Procurement Notes

Verify that the component matches the SN74LVC1G14DBVR-EV designation from EVVO. Confirm the package type is SOT-23-5 and check for RoHS compliance status. Ensure the supplier documentation aligns with the official datasheet specifications regarding electrical characteristics and operating temperature ranges before finalizing procurement.

Inverter Gates Selection Notes

Select this component when signal integrity requires noise filtering via Schmitt trigger action in mixed-signal environments. It is appropriate for designs needing high drive strength at low voltages. Consider the SOT-23-5 footprint constraints and verify compatibility with system voltage levels ranging from 1.65 V to 5.5 V during the design phase.

Inverter Gates Part Context

This part belongs to the 74LVC logic family, designed for low-voltage CMOS applications. It serves as a fundamental building block for digital signal inversion and waveform shaping. The DBVR suffix indicates the specific SOT-23-5 surface-mount packaging variant offered by the manufacturer for compact circuit board layouts.

Inverter Gates Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
