SN74LVC1G86DBVR-EV

Inverter Gates Overview

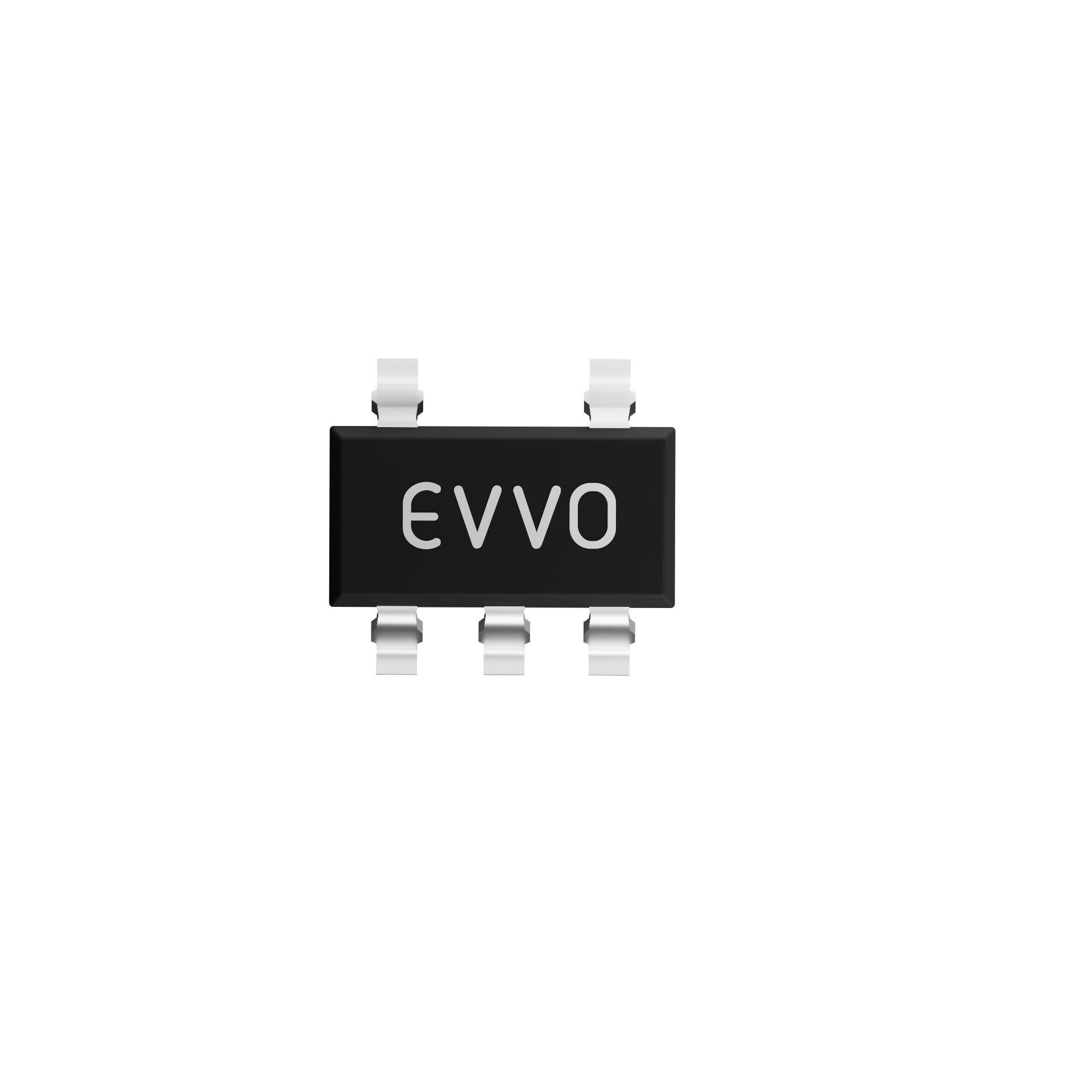

The SN74LVC1G86DBVR-EV is a single 2-input Exclusive-OR gate manufactured by EVVO. It operates from a supply voltage range of 1.65V to 5.5V and utilizes the LVC logic family. The device features over-voltage tolerant inputs capable of handling voltages between 0V and 7.0V while VCC is between 0.5V and 5.5V. It provides 24mA output sink capability and near-zero static supply current. The component is housed in an SOT-23-5 surface-mount package.

Inverter Gates Feature Summary

• Single 2-input Exclusive-OR logic function
• Over-voltage tolerant inputs up to 7.0V
• High-speed operation with typical propagation delay of 2.5ns at 5.0V
• CMOS compatible with low power consumption

Inverter Gates Applications

• Portable consumer electronics
• Battery-powered systems
• General-purpose digital logic applications

Inverter Gates Procurement Notes

Verify that the ordering suffix matches the specific package variant required, as the base part number may correspond to different packages such as SC70-5 or DFN6. Confirm RoHS compliance status and ensure the manufacturer designation aligns with EVVO specifications. Cross-reference the datasheet revision to confirm pinout consistency for the SOT-23-5 configuration before finalizing procurement orders.

Inverter Gates Selection Notes

Select this component when a compact XOR gate is needed for mixed-voltage environments due to its input tolerance. The SOT-23-5 package offers space efficiency for dense PCB layouts. Ensure the operating voltage falls within the 1.65V to 5.5V range and verify that the 24mA drive capability meets the load requirements of the connected circuitry.

Inverter Gates Part Context

This device belongs to the SN74LVC1G series of single-gate logic components. It shares the same functional core as other variants in the family but differs in packaging options like SC70-5 and DFN6. The LVC technology ensures compatibility with standard CMOS logic levels while providing improved speed and lower power dissipation compared to older logic families.

Inverter Gates Replacement Considerations

SN74LVC1G86DCKR

Inverter Gates FAQ

What is the maximum input voltage allowed?

The inputs are over-voltage tolerant and can handle voltages between 0V and 7.0V when the supply voltage (VCC) is between 0.5V and 5.5V.

Does the device support 5.0V TTL logic interfaces?

Yes, the device is TTL compatible and can interface with 5.0V TTL logic when the supply voltage (VCC) is between 2.7V and 3.6V.
