SN8D-500

$2.27

Description：CMC 125UH 2A 2LN TH
Series：SN
Mfr：KEMET
Package：Bulk

SKU:c84f9144ea2a Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 125UH 2A 2LN TH
Series：SN
Mfr：KEMET
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：2A
DC Resistance (DCR) (Max)：100mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-25°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：-
Height (Max)：0.728" (18.50mm)
Package / Case：Vertical, No Base, 2 PC Pin
Inductance @ Frequency：125 µH @ 100 kHz
Qualification：-
Grade：-

Download product information

SN8D-500

Overview

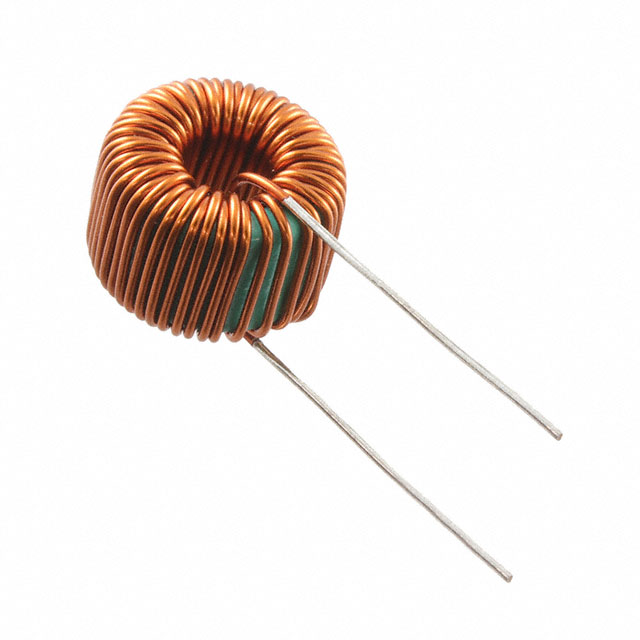

The KEMET SN8D-500 is a single-phase common mode choke designed for through-hole PCB mounting. It features an inductance of 125 µH and supports a maximum DC current of 2 A with a DCR of 100 mOhms. The component operates within a temperature range of -25°C to +105°C, utilizes a ferrite core, and has a lead spacing of 10 mm.

Feature Summary

Provides common mode noise suppression for AC line applications
Utilizes a ferrite core for effective electromagnetic interference filtering
Designed for reliable through-hole PCB integration

Applications

AC line filters
Power supply input stages
Electromagnetic interference (EMI) suppression

Procurement Notes

Verify the specific datasheet version for the SN8D-500 to confirm exact physical dimensions and electrical tolerances. Ensure compatibility with existing PCB footprints regarding lead spacing and mounting height. Cross-reference manufacturer documentation for any recent product change notifications or material updates affecting performance specifications.

Selection Notes

Select this component when a 125 µH inductance value is required for common mode noise reduction in power circuits. The 2 A current rating suits moderate power applications. Consider the operating temperature range and through-hole mounting style against board layout constraints and thermal management requirements.

Part Context

This part belongs to the KEMET SN series of common mode chokes. These components are engineered for general-purpose EMI filtering in electronic equipment. The SN8D-500 specifically addresses single-phase line filtering needs with standardized through-hole packaging for easy assembly.

Replacement Considerations

The SN8D-500JB is a related variant within the same family offering 125 µH inductance but with a different DCR specification. Verify pinout and dimensional compatibility before substituting.
