SN8D-500JB

$2.90

Description：CMC 125UH 2A 2LN TH
Series：SN
Mfr：KEMET
Package：Bulk

SKU:d393e5a77a55 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 125UH 2A 2LN TH
Series：SN
Mfr：KEMET
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：2A
DC Resistance (DCR) (Max)：100mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-25°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：-
Height (Max)：0.854" (21.70mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：125 µH @ 100 kHz
Qualification：-
Grade：-

Download product information

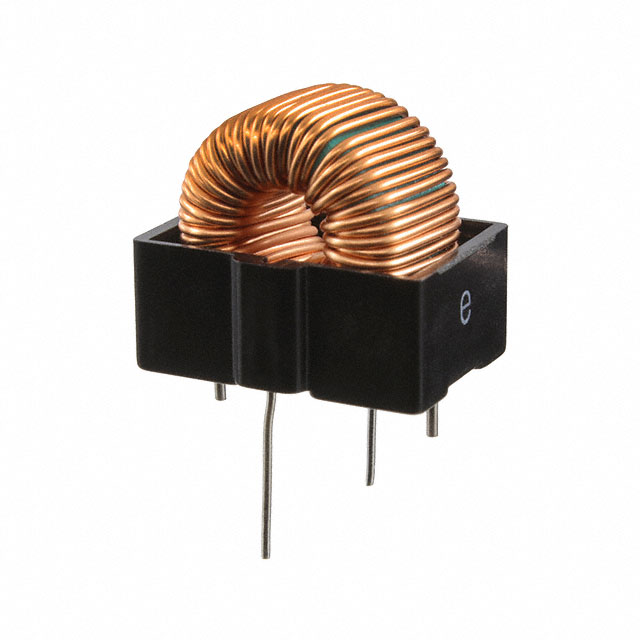

SN8D-500JB

Overview

The KEMET SN8D-500JB is a through-hole common mode choke belonging to the SN-JB series. It features an inductance of 125 µH and supports a maximum DC current of 2 A. The component has a maximum DC resistance of 100 mΩ. It operates within a temperature range of -25°C to +105°C. Physical dimensions are 18.5 mm in length, 15.5 mm in width, with unspecified height.

Feature Summary

Provides common mode noise suppression for single-channel circuits
Designed for printed circuit board mounting via through-hole termination
Utilizes iron core construction for power applications

Applications

Power supply input filtering
EMI suppression in electronic equipment
Signal line noise reduction

Procurement Notes

Verify the specific datasheet version for the SN8D-500JB to confirm exact physical dimensions and thermal characteristics. Ensure the selected component matches the required 125 µH inductance and 2 A current rating for the target application. Confirm RoHS compliance status as indicated in official manufacturer documentation before finalizing procurement specifications.

Selection Notes

Select this component when a single-channel through-hole common mode choke is required for power lines. The 125 µH value and 2 A current handling capability define its suitability for specific power stages. Verify that the PCB layout accommodates the 18.5 mm by 15.5 mm footprint and through-hole pin configuration.

Part Context

The SN8D-500JB is part of the KEMET SN-JB series of differential mode chokes designed for through-hole mounting. This series targets general power filtering needs where standard leaded components are preferred over surface mount alternatives. The product is classified under common mode chokes and filters.

Replacement Considerations

Consult official KEMET documentation for verified substitute part numbers within the SN-JB series or equivalent common mode chokes with matching electrical parameters.
