Product Detailed Parameters
- Description：NMC 26.0UH 2.0A 0.0500 OHM TH
- Series：SN
- Mfr：KEMET
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-25°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.748" Dia (19.00mm)
- Height (Max)：0.413" (10.50mm)
- Package / Case：Horizontal, 2 PC Pin
- Inductance @ Frequency：26 µH @ 100 kHz
- Qualification：-
- Grade：-
Download product information
Overview

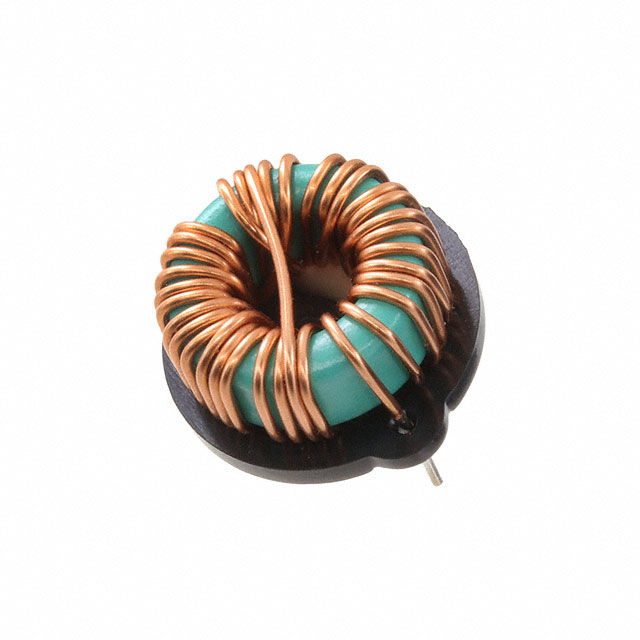

The KEMET SN8S-30P2 is a single-channel common mode choke filter designed for through-hole PCB mounting. It features an inductance of 26 uH and supports a maximum DC current of 2 A. The component exhibits a maximum DC resistance of 50 mohms. It operates within a temperature range of -25 C to +105 C. Physical dimensions include a length of approximately 19 mm and a height of 10.5 mm, housed in a standard leaded package suitable for AC line filtering applications.
Feature Summary
- Provides common mode noise suppression for single-channel circuits
- Designed for reliable through-hole printed circuit board integration
- Engineered to handle continuous direct current loads up to specified ratings
Applications
- AC line input filtering
- Power supply noise reduction
- Electromagnetic interference suppression in electronic equipment
Procurement Notes
Verify the specific datasheet version for the SN8S-30P2 to confirm exact physical dimensions and electrical tolerances prior to design finalization. Ensure that the selected supplier provides documentation confirming RoHS compliance status as indicated in official manufacturer records. Cross-reference the part number with the latest KEMET product announcements to verify availability and any potential obsolescence notices before committing to procurement volumes.
Selection Notes
Select this component when a single-channel solution is required for common mode noise attenuation in power lines. The 2 A current rating makes it suitable for moderate power applications where space constraints allow for through-hole mounting. Consider the 26 uH inductance value against the target frequency spectrum of the noise to be suppressed. Evaluate the thermal performance at the maximum operating temperature of 105 C to ensure long-term reliability under load conditions.
Part Context
This component belongs to the KEMET SN-P2 series of common mode chokes. The series is characterized by its robust construction for through-hole applications and consistent performance in filtering electromagnetic interference. The SN8S-30P2 specifically denotes the 26 uH variant within this lineup, offering a balance between inductance and current handling capability for general-purpose AC line protection.
Replacement Considerations
The SN8S-30P2 may be substituted with other KEMET SN8S series variants such as the SN8S-40P2, which offers higher inductance (46 uH) but similar current handling. Verify that any replacement maintains the same through-hole footprint and meets or exceeds the 2 A current rating and 50 mohms DC resistance specifications.
