SN8S-400JB

$3.10

Description：CMC 46UH 2A 2LN TH
Series：SN
Mfr：KEMET
Package：Bulk

SKU:1f0c801f9947 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 46UH 2A 2LN TH
Series：SN
Mfr：KEMET
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：2A
DC Resistance (DCR) (Max)：70mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-25°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.709" L x 0.492" W (18.00mm x 12.50mm)
Height (Max)：0.854" (21.70mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：46 µH @ 100 kHz
Qualification：-
Grade：-

Download product information

SN8S-400JB

Overview

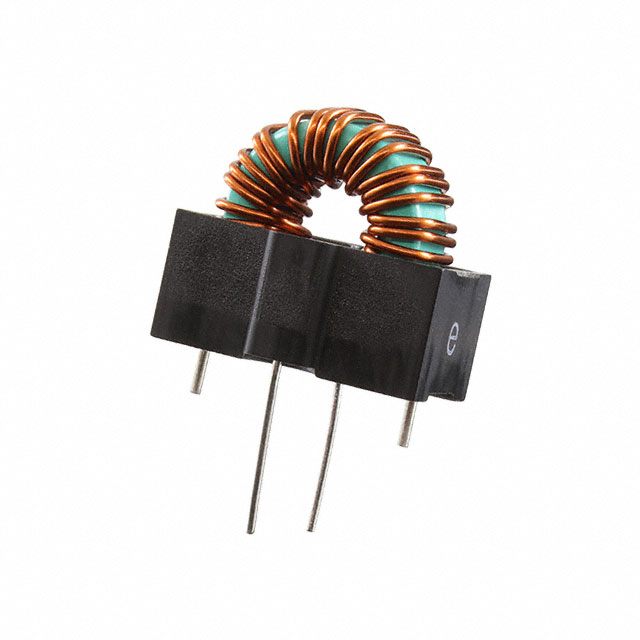

The KEMET SN8S-400JB is a through-hole common mode choke belonging to the SN-JB series. It features an inductance of 46 uH and supports a maximum DC current of 2 A with a maximum DC resistance of 60 mOhms. The component operates within a temperature range of -25 C to +105 C. It utilizes a ferrite core and is designed for PCB mounting via through-hole termination.

Feature Summary

Provides common mode noise filtering for power circuits
Utilizes a ferrite core for magnetic performance
Designed for through-hole PCB mounting

Applications

Power supply line filtering
AC line filter applications

Procurement Notes

Verify the specific suffix against official documentation, as variations may exist. Confirm RoHS compliance status directly from the manufacturer datasheet. Ensure the ordering part number matches the exact electrical requirements for your design. Cross-reference the manufacturer identifier to avoid counterfeit components during sourcing.

Selection Notes

Select this component when a 46 uH inductance at 2 A is required for common mode suppression. Consider the physical dimensions and lead spacing for board layout compatibility. Evaluate the thermal operating limits relative to the application environment. Compare DCR specifications against efficiency requirements for the target circuit design.

Part Context

This component is part of the SN-JB series of normal mode coils manufactured by KEMET. These are standard filters intended for general power applications. The series offers through-hole options for robust mechanical attachment on printed circuit boards.
