Product Detailed Parameters
- Description：CMC 72UH 2A 2LN TH
- Series：SN
- Mfr：KEMET
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：2A
- DC Resistance (DCR) (Max)：68mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-25°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.630" Dia x 0.354" W (16.00mm x 9.00mm)
- Height (Max)：0.689" (17.50mm)
- Package / Case：Vertical, No Base, 2 PC Pin
- Inductance @ Frequency：72 µH @ 100 kHz
- Qualification：-
- Grade：-
Download product information
Overview

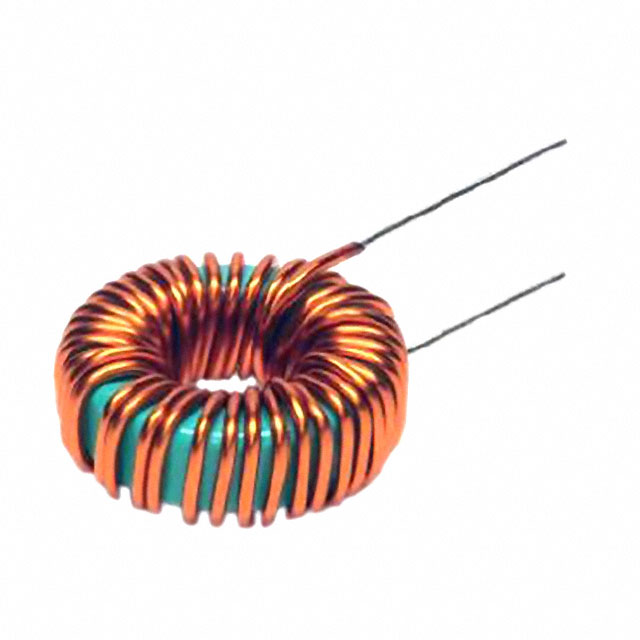

The KEMET SN8S-500 is a two-line common mode choke designed for through-hole mounting. It features an inductance of 72 µH at 100 kHz and supports a maximum DC current of 2 A. The component has a maximum DC resistance of 68 mΩ. It operates within a temperature range of -40°C to +105°C. The device utilizes a wire wound construction suitable for general electronic applications requiring electromagnetic interference suppression.
Feature Summary
- Provides common mode noise suppression for two-line circuits
- Utilizes wire wound construction for reliable performance
- Designed for through-hole mounting on printed circuit boards
Applications
- Electromagnetic interference filtering in power supplies
- Signal line protection in industrial equipment
- Noise suppression in consumer electronics
Procurement Notes
Verify the specific manufacturer datasheet for detailed electrical characteristics and mechanical drawings. Confirm that the through-hole package dimensions match the target PCB layout requirements. Ensure the operating environment stays within the specified temperature limits to maintain component integrity and performance standards.
Selection Notes
Select this component when a 72 µH inductance value is required for common mode noise reduction. The 2 A current rating must align with the circuit's operational demands. Consider the through-hole mounting style if surface mount options are not feasible for the assembly process or mechanical stability needs.
Part Context
This part belongs to the SN series of common mode chokes from KEMET. These components are engineered for general-purpose EMI suppression. The series offers various inductance values to suit different filtering requirements across multiple electronic industries.
FAQ
What is the inductance value of the SN8S-500?
The inductance is 72 µH, measured at a frequency of 100 kHz.
What is the maximum DC current rating?
The maximum DC current rating is 2 A.
