SNCMC-127-015

Overview

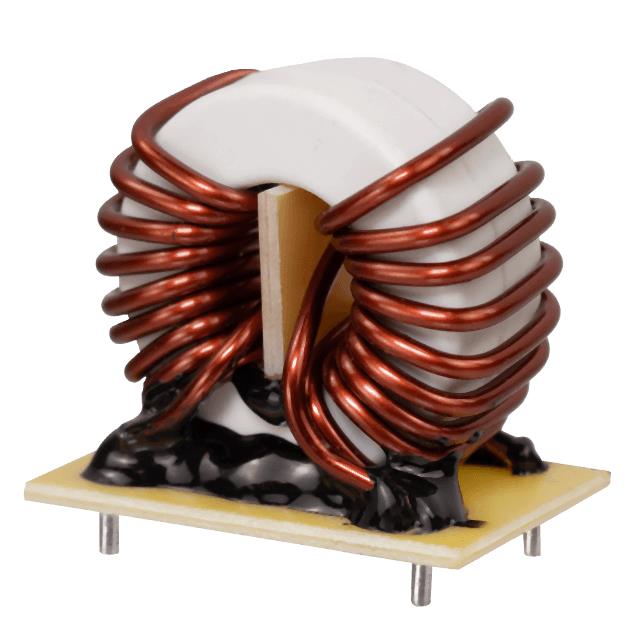

The Signal Transformer SNCMC-127-015 is a nanocrystalline common mode choke designed for through-hole mounting. It features an inductance of 3.2 mH at 100 kHz and offers an impedance of 3.31 kOhms at the same frequency. The component supports a maximum current rating of 16A with a DC resistance characteristic suitable for high-power applications. Operating within a temperature range of -25°C to 130°C, it utilizes lead thickness of 1.1 mm and complies with RoHS standards.

Feature Summary

• Utilizes nanocrystalline core material for effective electromagnetic interference suppression
• Designed for through-hole PCB mounting with robust mechanical stability
• Capable of handling high current loads up to 16A

Applications

• Power supply input filtering
• Industrial equipment EMI suppression
• Consumer electronics noise reduction

Procurement Notes

Verify the specific datasheet version to confirm exact electrical tolerances and physical dimensions before integration. Ensure that the through-hole footprint matches the target PCB layout constraints. Confirm RoHS compliance status if required by regional regulations. Check for any AEC-Q200 automotive qualification requirements, as this part is noted as non-compliant with that standard.

Selection Notes

Select this component when high current capacity and strong common mode rejection are required in space-constrained through-hole designs. The nanocrystalline construction provides superior performance compared to traditional ferrite cores at specific frequencies. Consider the 16A rating against peak load currents to ensure thermal stability. Verify that the 3.2 mH inductance aligns with the filter cutoff requirements of the circuit design.

Part Context

This component belongs to the SNCMC series of common mode chokes from Signal Transformer. The series focuses on high-performance noise suppression using advanced magnetic materials. These components are engineered for reliability in demanding electronic environments. The SNCMC-127-015 represents a specific configuration optimized for high-current applications requiring precise impedance characteristics.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
