SNR-10-000-T

Power Line Filter Modules Overview

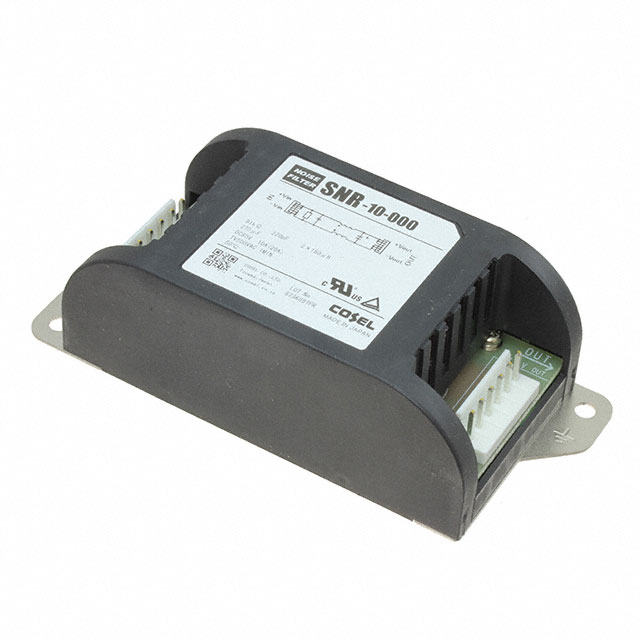

The SNR-10-000-T is a single-stage DC power line filter manufactured by Cosel USA, Inc. It features a chassis mount design with terminal block termination for secure electrical connections. The component is rated for a maximum voltage of 50 VDC and supports a continuous current of 10 A. It operates within an ambient temperature range of -40°C to +71°C. The unit incorporates a ripple noise filtering mechanism designed to suppress electromagnetic interference (EMI) in direct current circuits.

Power Line Filter Modules Feature Summary

• Single-stage EMI/ripple noise suppression for DC power lines
• Chassis mount construction with screw terminal block interface
• Rated for 50 VDC input and 10 A continuous load current

Power Line Filter Modules Applications

• Industrial control systems requiring DC power conditioning
• Telecommunications equipment power supply inputs
• Medical device power distribution networks

Power Line Filter Modules Procurement Notes

Verify the specific terminal block configuration and mounting hole dimensions against your chassis design before procurement. Confirm that the operating environment temperature remains within the specified -40°C to +71°C range to ensure reliable performance. Ensure the DC voltage does not exceed 50 VDC and the current load stays at or below 10 A to prevent component failure.

Power Line Filter Modules Selection Notes

Select this model when a robust, high-current DC line filter is required for chassis-mounted installations. The terminal block interface offers a secure connection method suitable for industrial environments where vibration resistance is critical. Consider the physical size and weight constraints of the enclosure, as chassis mount filters typically require dedicated mounting space and access for wiring terminals.

Power Line Filter Modules Part Context

This component belongs to the SNR series of power line filters from Cosel USA, Inc., which are engineered for general-purpose DC applications. The series provides reliable noise suppression for sensitive electronic equipment. The SNR-10-000-T variant specifically addresses higher current requirements up to 10 A while maintaining a compact footprint suitable for standard industrial enclosures.

Power Line Filter Modules Replacement Considerations

When replacing this unit, ensure the substitute part matches the 50 VDC rating and 10 A current capacity. Verify that the replacement also utilizes a chassis mount style with compatible terminal block spacing. Check that the new component meets the same EMI suppression standards and operates within the required temperature range.
