Overview

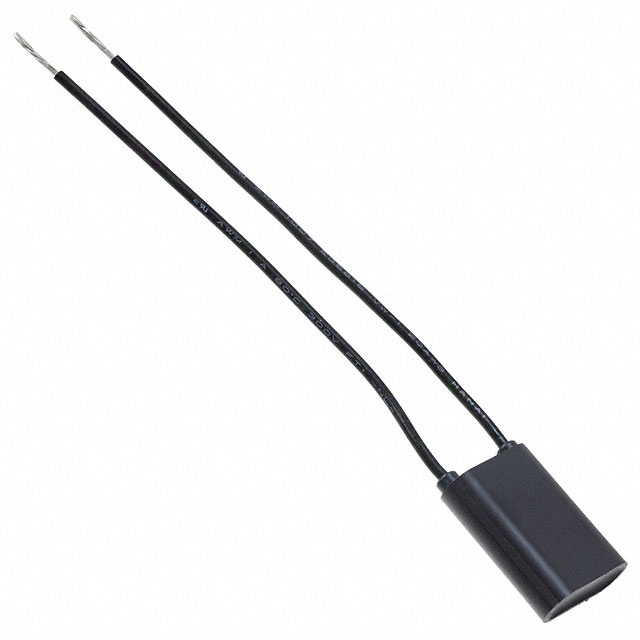

The SNUB0000 is an RC snubber unit manufactured by Red Lion Controls, designed for inductive load suppression. It features a maximum voltage rating of 250 VDC and includes internal components rated at 0.1 microfarad capacitance, 47 Ohm resistance, and 0.5 W power dissipation. The device has physical dimensions of 19 mm depth and 23 mm height.

Feature Summary

• Suppresses inductive kick from motors, solenoids, or relay coils
• Mitigates high energy noise spikes
• Arc suppression capability

Applications

• Motor circuits
• Solenoid protection
• Relay coil suppression

Procurement Notes

Verify the component matches the specific inductive load requirements before integration. Confirm that the 250 VDC rating aligns with the system's operational voltage limits. Ensure the physical footprint fits the designated enclosure space. Cross-reference the datasheet for environmental constraints.

Selection Notes

Select this unit when arc suppression is required for low-voltage DC inductive loads. Consider the compact form factor for tight installations. Evaluate the 0.5 W power rating against expected surge frequencies. This component serves as a protective measure rather than a primary control element.

Part Context

This snubber unit belongs to the broader Red Lion Controls portfolio of industrial instrumentation accessories. It complements their PID controllers and display meters by protecting sensitive switching components from electrical transients generated by inductive loads in automation environments.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing circuit designs if sourcing alternatives.
