SP26LV432CN-L/TR

Drivers, Receivers, Transceivers Overview

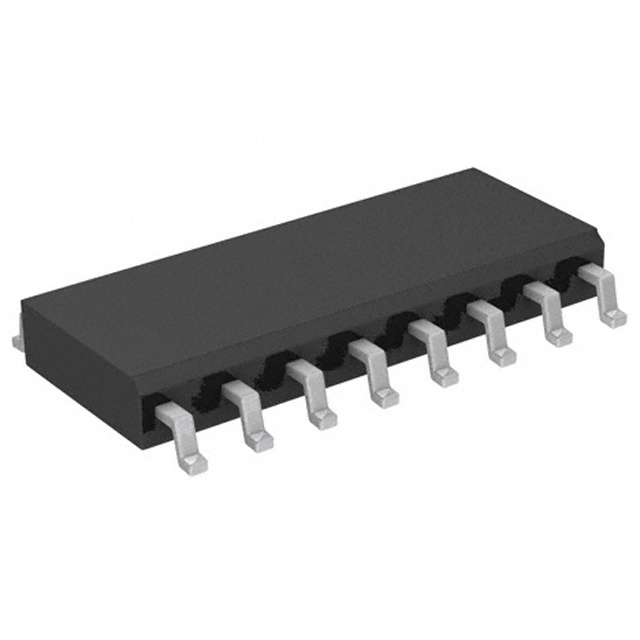

The SP26LV432CN-L/TR is a quad receiver integrated circuit manufactured by MaxLinear, designed for high-speed differential signaling applications. It supports the EIA-422 standard and operates with a single 3.3 V power supply. The device features a data rate capability of 50 Mbps, making it suitable for demanding communication interfaces. It is housed in a 16-pin SOIC surface-mount package with physical dimensions of 9.9 mm in length, 3.9 mm in width, and 1.65 mm in height. The component is rated for an operating temperature range from 0°C to +70°C.

Drivers, Receivers, Transceivers Feature Summary

• Quad receiver architecture supporting EIA-422 differential signaling standards
• High-speed data transmission capability up to 50 Mbps
• Optimized for low-voltage 3.3 V single-supply operation
• Compact surface-mount packaging for space-constrained designs

Drivers, Receivers, Transceivers Applications

• Industrial communication systems requiring robust differential reception
• Data acquisition networks utilizing RS-422 protocols
• Embedded control units needing high-speed signal integrity

Drivers, Receivers, Transceivers Part Context

This component belongs to the MaxLinear interface IC portfolio, specifically within the category of RS-422/RS-485 transceivers and receivers. It serves as a specialized solution for multi-drop bus architectures where multiple receivers must process incoming differential signals simultaneously. The part complements other interface solutions by providing dedicated quad-receiver functionality without integrated drivers.
