SP5002-06TTG

Overview

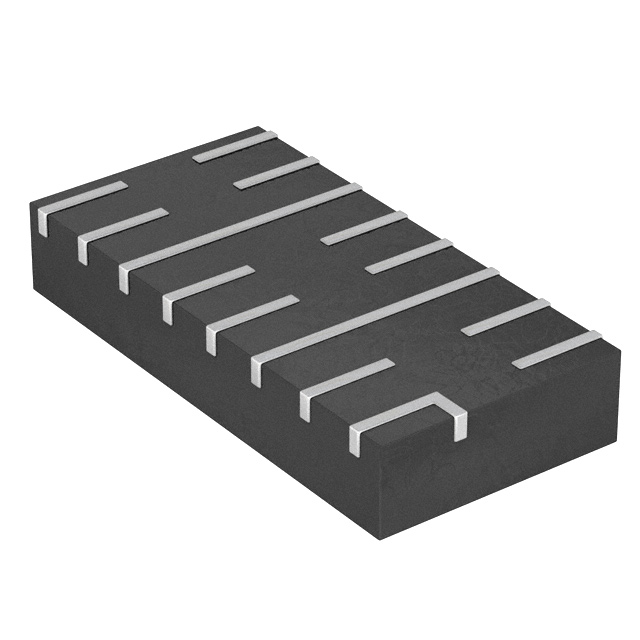

The Littelfuse SP5002-06TTG is a six-line common mode filter (CMF) integrating TVS diodes for ESD protection. It provides simultaneous common mode EMI filtering and electrostatic discharge protection for high-speed differential serial interfaces. The device features a surface mount package with a rated current of 100mA and supports AEC-Q101 automotive qualification standards.

Feature Summary

• Integrates common mode filtering with transient voltage suppression in a single component
• Provides electrostatic discharge protection for high-speed differential data lines
• Designed to maintain signal integrity while suppressing electromagnetic interference

Applications

• High-speed differential serial interface systems
• Automotive electronics requiring AEC-Q101 compliance
• Circuits needing combined EMI filtering and ESD protection

Procurement Notes

Verify the specific suffix TTG against the manufacturer's official datasheet to confirm pinout, tolerance, and packaging configuration. Ensure the component meets the required AEC-Q101 automotive reliability standards for your target application environment before finalizing procurement decisions.

Selection Notes

Select this component when a single solution is required for both noise suppression and surge protection on multiple differential pairs. Consider the 100mA rating and line count to ensure compatibility with the specific bus architecture and signal speed requirements of the design.

Part Context

This part belongs to the SP5002 series of general-purpose common mode filters from Littelfuse. These devices are engineered to address the increasing need for compact protection solutions in dense electronic assemblies where space constraints limit the use of separate filter and TVS components.

Replacement Considerations

Consult official Littelfuse substitution guides for verified equivalents. Do not assume functional interchangeability with other CMF or TVS arrays without verifying electrical parameters and pin configurations.
