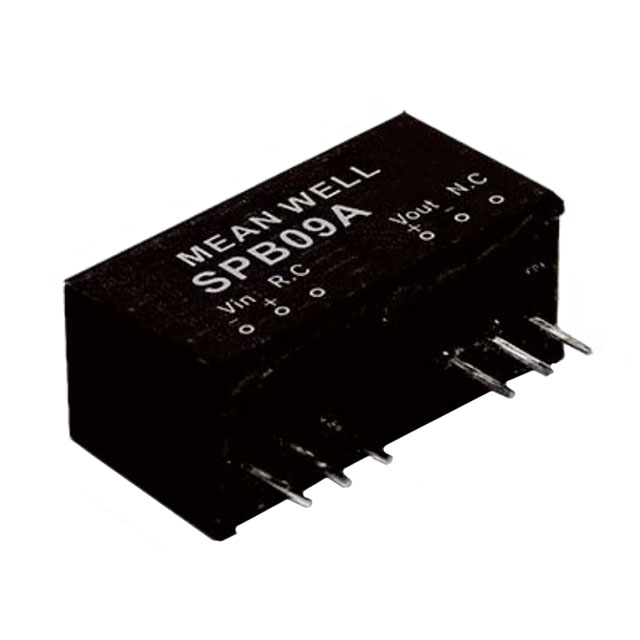

SPB09C-03

SPB09C-03 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists MEAN WELL USA Inc.. Its product description is DC/DC CONVERTER. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for SPB09C-03

• Description：DC/DC CONVERTER
• Series：SPB09 (9W)
• Mfr：MEAN WELL USA Inc.
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：2A
• Power (Watts)：6.6 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off
• Operating Temperature：-40°C ~ 90°C (With Derating)
• Efficiency：82%
• Mounting Type：Through Hole
• Package / Case：8-DIP Module, 6 Leads
• Size / Dimension：0.94" L x 0.38" W x 0.44" H (24.0mm x 9.6mm x 11.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE, EAC, UKCA
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for SPB09C-03
