SPC5644CCF0MMJ1

Microcontrollers Overview

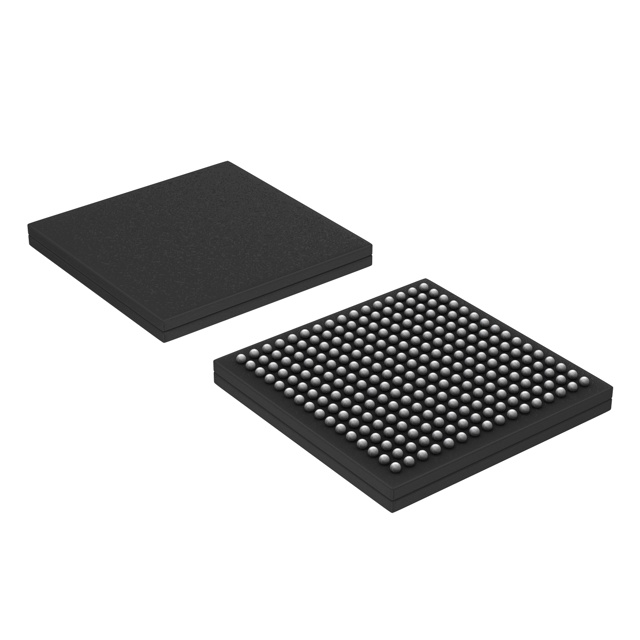

The SPC5644CCF0MMJ1 is a 32-bit microcontroller from the MPC564xC series by NXP Semiconductors. It features a dual Power Architecture core configuration comprising an e200z4d and an e200z0h processor. The device includes 1.5 MB of Flash memory and 192 kB of SRAM. Operating at a maximum clock frequency of 120 MHz, it supports automotive applications with AEC-Q100 qualification. The unit utilizes a MAPBGA-256 package and operates within a temperature range of -40°C to +125°C.

Microcontrollers Feature Summary

• Dual-core architecture combining high-performance and real-time processing capabilities
• Automotive-grade reliability certified under AEC-Q100 standards
• Integrated analog-to-digital conversion modules for signal acquisition

Microcontrollers Applications

• Automotive body control modules
• Industrial control systems
• Gateway applications requiring robust communication interfaces

Microcontrollers Procurement Notes

Verify the specific suffix MMJ1 to confirm the MAPBGA-256 package type and pinout compatibility. Confirm the operating temperature grade corresponds to the extended automotive range required for your design. Ensure that the EOL status or lifecycle stage aligns with long-term production requirements before finalizing procurement plans.

Microcontrollers Selection Notes

Select this component when a dual-core Power Architecture solution is required for safety-critical or complex control tasks. Compare pin counts and I/O availability against the LQFP variants if board space constraints differ. Verify that the 1.5 MB Flash capacity meets application code size requirements compared to higher-density alternatives in the MPC564x family.

Microcontrollers Part Context

This part belongs to the MPC564xC family, designed for ultra-reliable automotive and industrial control applications. It shares architectural similarities with other members like the SPC5644CF0MMJ1 but differs in package and specific peripheral configurations. The family targets applications demanding high integration and functional safety compliance.

Microcontrollers Replacement Considerations

Direct substitutes include other MPC564xC variants such as SPC5644CF0MMJ1, provided package and pinout compatibility are verified. Cross-reference with SPC5646CCF0MMJ1 for higher memory options within the same package family.
