SPC5777CRK3MME3

Microcontrollers Overview

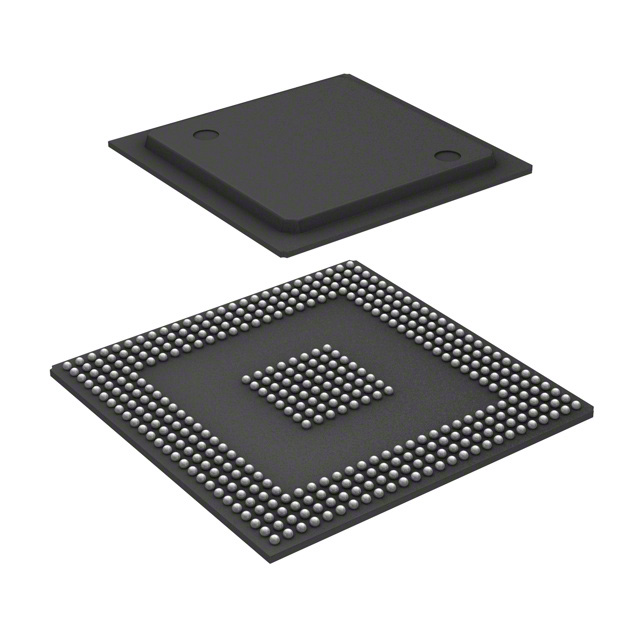

The SPC5777CRK3MME3 is a 32-bit microcontroller from the MPC5777C series, featuring an e200z7 core operating at up to 264 MHz. It integrates 8 MB of Flash memory and 512 kB of SRAM within a MAPBGA-416 package. The device supports AEC-Q100 automotive grade standards with a wide operating temperature range of -40°C to +125°C. Core supply voltage operates between 1.2 V and 1.32 V. Interfaces include CAN, GPIO, SCI, and SPI.

Microcontrollers Feature Summary

• Automotive-grade reliability certified under AEC-Q100 standards for harsh environments
• High-performance e200z7 processor core optimized for real-time control tasks
• Integrated security features including cryptographic services engine support
• Robust timer subsystems with eTPU and eMIOS channels for precise timing

Microcontrollers Applications

• Engine management systems requiring high computational throughput
• Transmission control modules demanding functional safety compliance
• Advanced driver assistance systems utilizing multiple sensor interfaces
• Chassis control applications needing precise timing synchronization

Microcontrollers Procurement Notes

Verify the complete part number against official NXP documentation to ensure correct suffix alignment. Confirm that the MAPBGA-416 package matches your PCB footprint requirements. Check for specific revision levels if legacy compatibility is critical. Ensure sourcing channels provide valid traceability records for automotive quality standards.

Microcontrollers Selection Notes

Select this component when system design requires a single-core Power Architecture solution with substantial on-chip memory. Consider the 264 MHz clock speed for complex algorithm execution. Evaluate the 416-pin BGA package constraints during mechanical layout. Compare peripheral counts against application interface needs before finalizing the choice.

Microcontrollers Part Context

This MCU belongs to the MPC5777C family designed for powertrain and chassis applications. It shares architectural similarities with other SPC57xx devices but offers specific memory and pinout configurations. The series emphasizes functional safety and security integration for modern vehicle electronics.

Microcontrollers Replacement Considerations

Consult NXP official substitution lists for direct pin-compatible alternatives. Verify electrical characteristics match if swapping within the MPC5777C family. Cross-reference package dimensions to ensure mechanical fit without board redesign.
