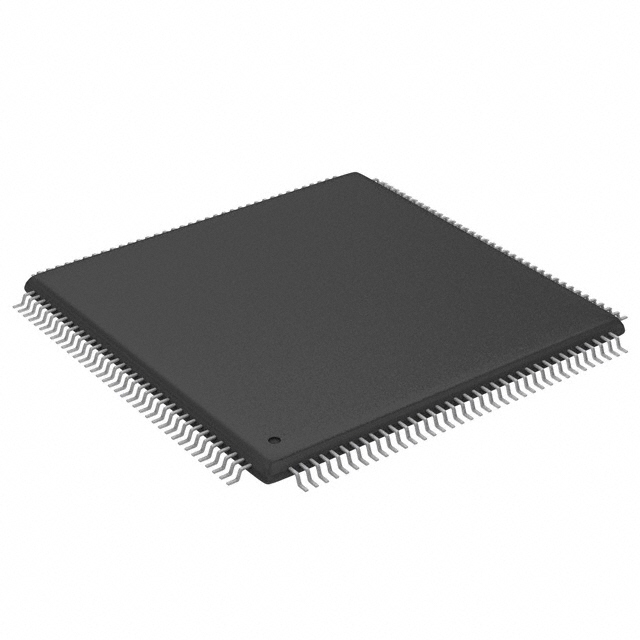

SPC58EG80E5QEC0X

$30.02

Description：IC MCU 32BIT 4MB FLASH 144ETQFP
Series：SPC58
Mfr：STMicroelectronics
Package：Tape & Reel (TR),Cut Tape (CT)
Core Processor：e200z4

SKU:a962a6744ba9 Category: Microcontrollers Brand: STMicroelectronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SPC58EG80E5QEC0X is listed in the Microcontrollers range at ChipApex. The manufacturer field lists STMicroelectronics. Its product description is IC MCU 32BIT 4MB FLASH 144ETQFP. Review the specifications below when checking this part for your BOM.

Microcontrollers specifications for SPC58EG80E5QEC0X

Description：IC MCU 32BIT 4MB FLASH 144ETQFP
Series：SPC58
Mfr：STMicroelectronics
Package：Tape & Reel (TR),Cut Tape (CT)
Core Processor：e200z4
Core Size：32-Bit Dual-Core
Speed：180MHz
Connectivity：CANbus, Ethernet, FlexRay, I2C, LINbus, SPI
Peripherals：DMA, POR, WDT
Number of I/O：120
Program Memory Size：4MB (4M x 8)
Program Memory Type：FLASH
EEPROM Size：256K x 8
RAM Size：768K x 8
Voltage - Supply (Vcc/Vdd)：1.14V ~ 1.26V
Data Converters：A/D 10/12b SAR
Oscillator Type：External, Internal
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Supplier Device Package：144-eTQFP (20x20)
Package / Case：144-TQFP Exposed Pad
Grade：Automotive
Qualification：AEC-Q100

Microcontrollers datasheet and documents for SPC58EG80E5QEC0X

SPC58EG80E5QEC0X

Microcontrollers Overview

The SPC58EG80E5QEC0X is a 32-bit Power Architecture microcontroller from the SPC58 Chorus G Line family, designed for automotive ASIL-D applications. It features an e200z4 triple-core architecture with a maximum frequency of 180 MHz. The device includes 6144 KB code flash and 256 KB data flash, alongside 608 KB general-purpose SRAM. It integrates extensive connectivity including dual Ethernet controllers, FlexRay, MCAN-FD, and LINFlexD modules within an eTQFP144 package.

Microcontrollers Feature Summary

Triple-core e200z4 architecture with one lock-step channel for ISO 26262 ASIL-D compliance
Integrated Hardware Security Module (HSM) with dedicated flash memory for robust integrity checking
Dual crossbar switch architecture supporting concurrent access to peripherals and memory with end-to-end ECC
Comprehensive analog-to-digital converter system featuring multiple 12-bit SAR converters and a supervisor ADC

Microcontrollers Applications

Automotive body electronics and networking systems
Safety-critical applications requiring ASIL-D certification
Secure on-board communication in connected vehicles
General purpose automotive control units

Microcontrollers Procurement Notes

Verify the specific ordering suffix QEC0X against the manufacturer's official datasheet to confirm package type, temperature grade, and safety qualification status. Ensure compatibility with existing design constraints regarding the eTQFP144 footprint and voltage requirements before finalizing procurement decisions.

Microcontrollers Selection Notes

Select this component for designs requiring high-performance processing combined with strict functional safety standards. The triple-core configuration supports complex real-time tasks while maintaining redundancy. Evaluate the extensive peripheral set, particularly the dual Ethernet and FlexRay interfaces, against network topology requirements.

Microcontrollers Part Context

This part belongs to the SPC584Gx, SPC58EGx, and SPC58NGx family, which supersedes the SPC56x series. These devices are engineered to reduce cost per feature while improving power efficiency and throughput. The SPC58EG variant specifically targets general-purpose automotive applications with enhanced security and safety features.
